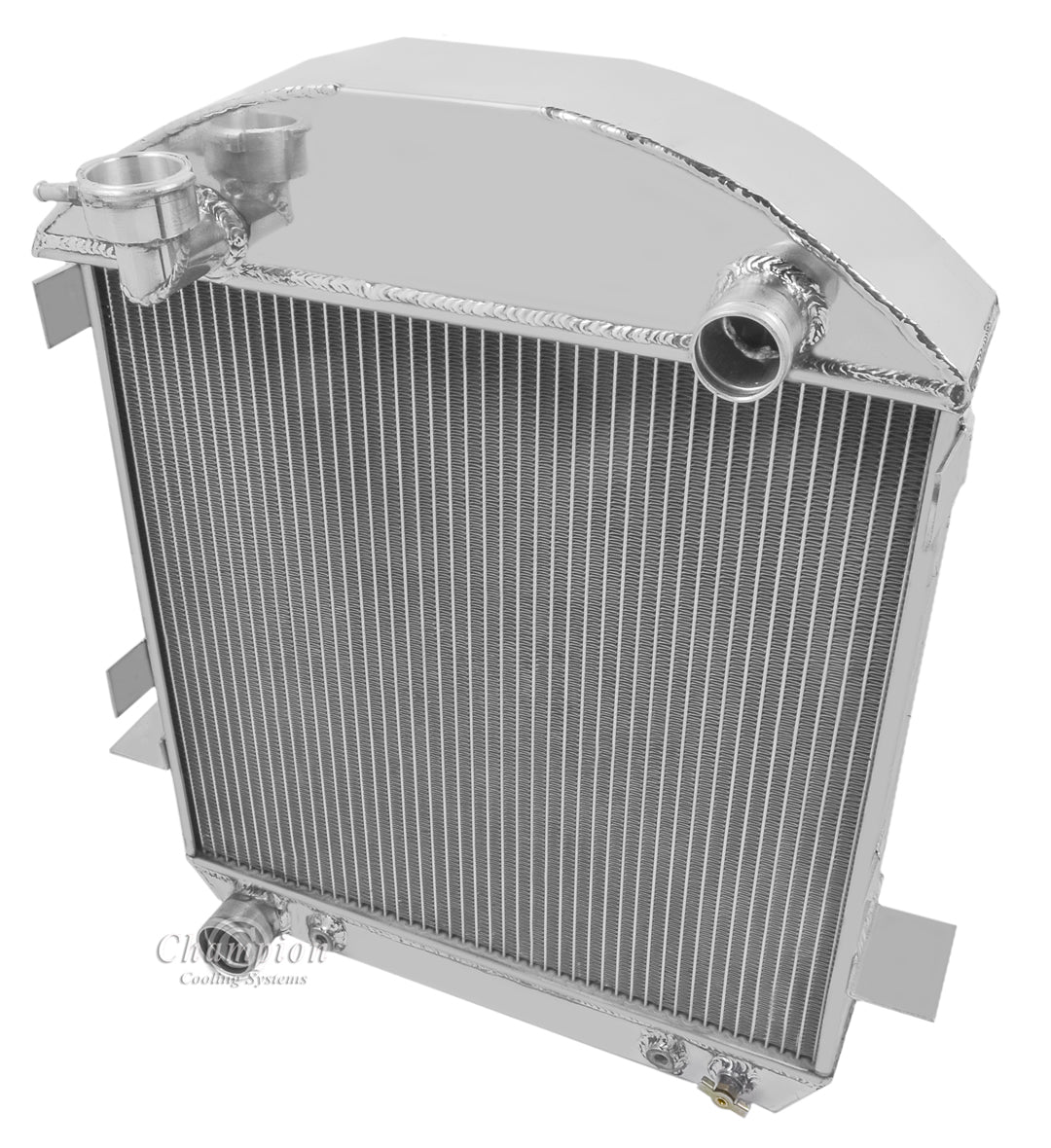

1917-1927 Ford Model-T 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 23.75" tall x 22.5" wide (including brackets)
Core: 18" tall x 18.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: (top) 4.5" thick (bottom) 3" thick
Tubes: 0.75" thick

Whats Included

- Bracket Mounted
- 13 lb. Radiator Cap included
- Transmission Cooler included (1/8" 27NPT)
- Ford / Mopar Inlet and outlet set up

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
