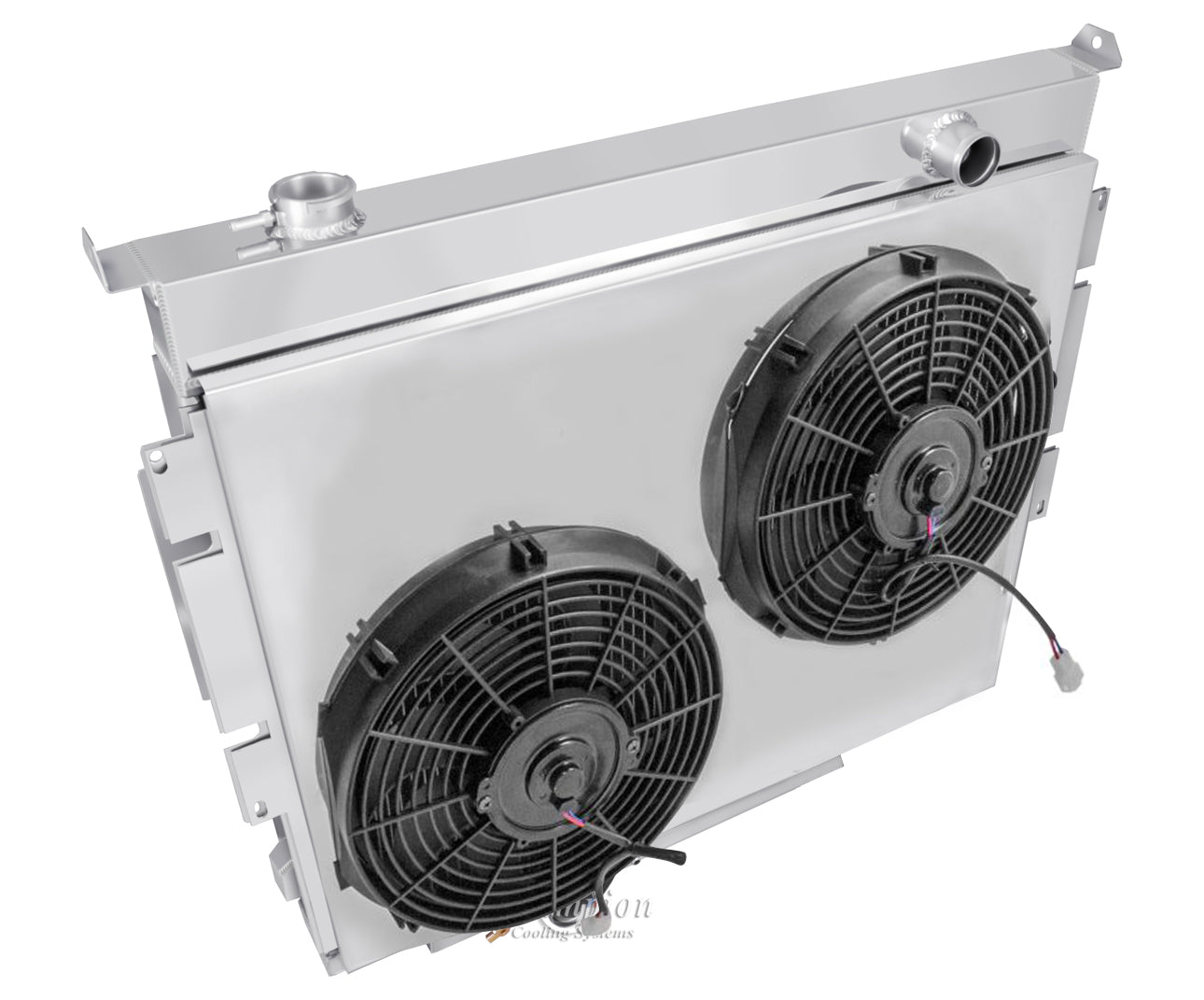

1983-1999 Ford Diesel Truck 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.00" thick
Tubes: 0.63" thick

Total Thickness: 7" (5.5" between fan motors)

Whats Included

- 16" Fans
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/8-27 npt)
- Aluminum shroud

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
