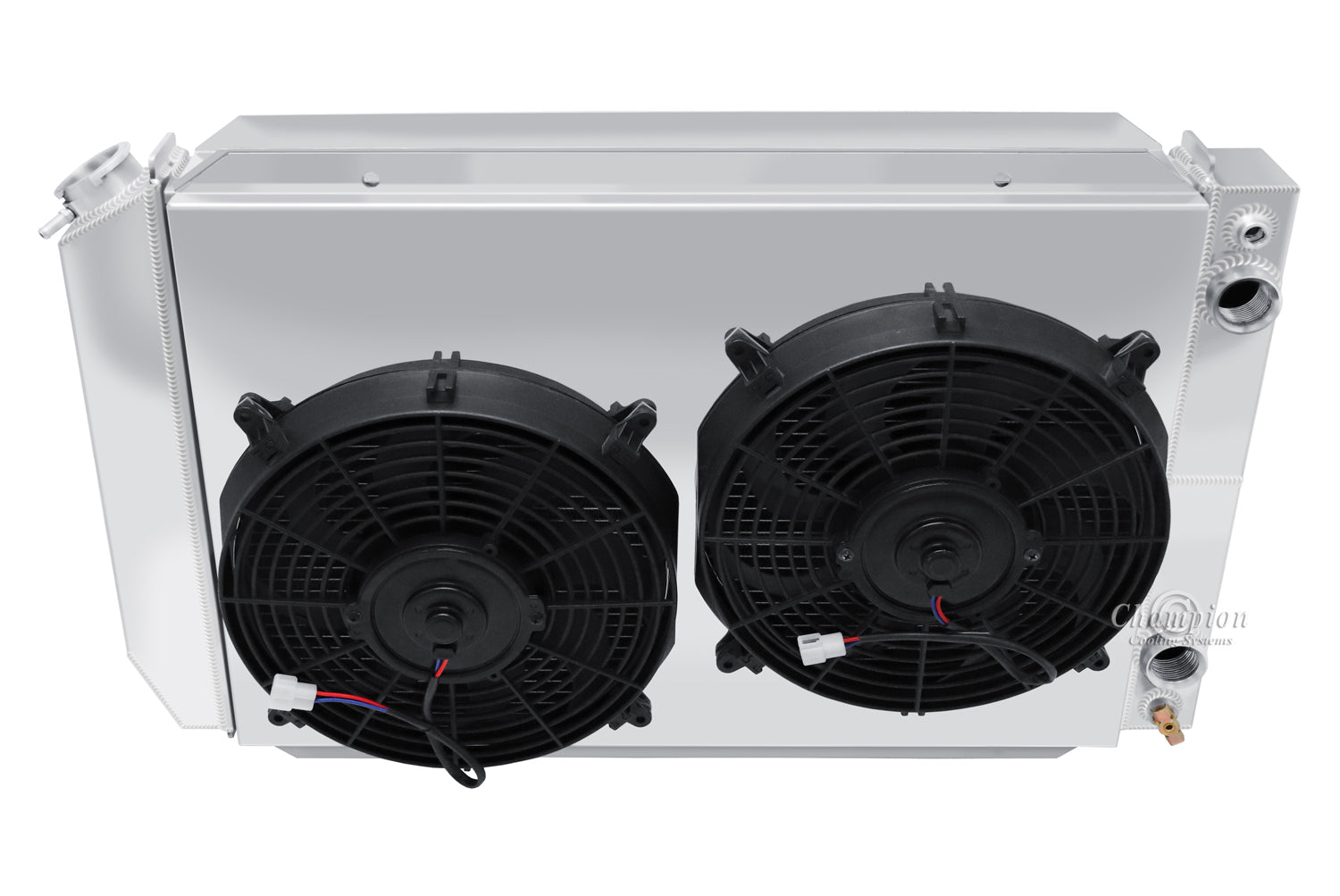

1979-1993 Mustang LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 19.05" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 2.5" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Whats Included

- 12" Fans with 1031CFM Each
- Saddle Mounted
- 16lb. Radiator Cap included
- Steam Port with 1/4" barbed fitting and plug included
- Aluminum shroud

SPAL High Performance Series -3202
12" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 13.389"
B: Depth 4.397"
C: Width 13.389"

1870 CFM
AMP Draw: 38.60

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)

16AN Hose Kit

Complete your install with a clean look braided an hose line and swivel ends.
