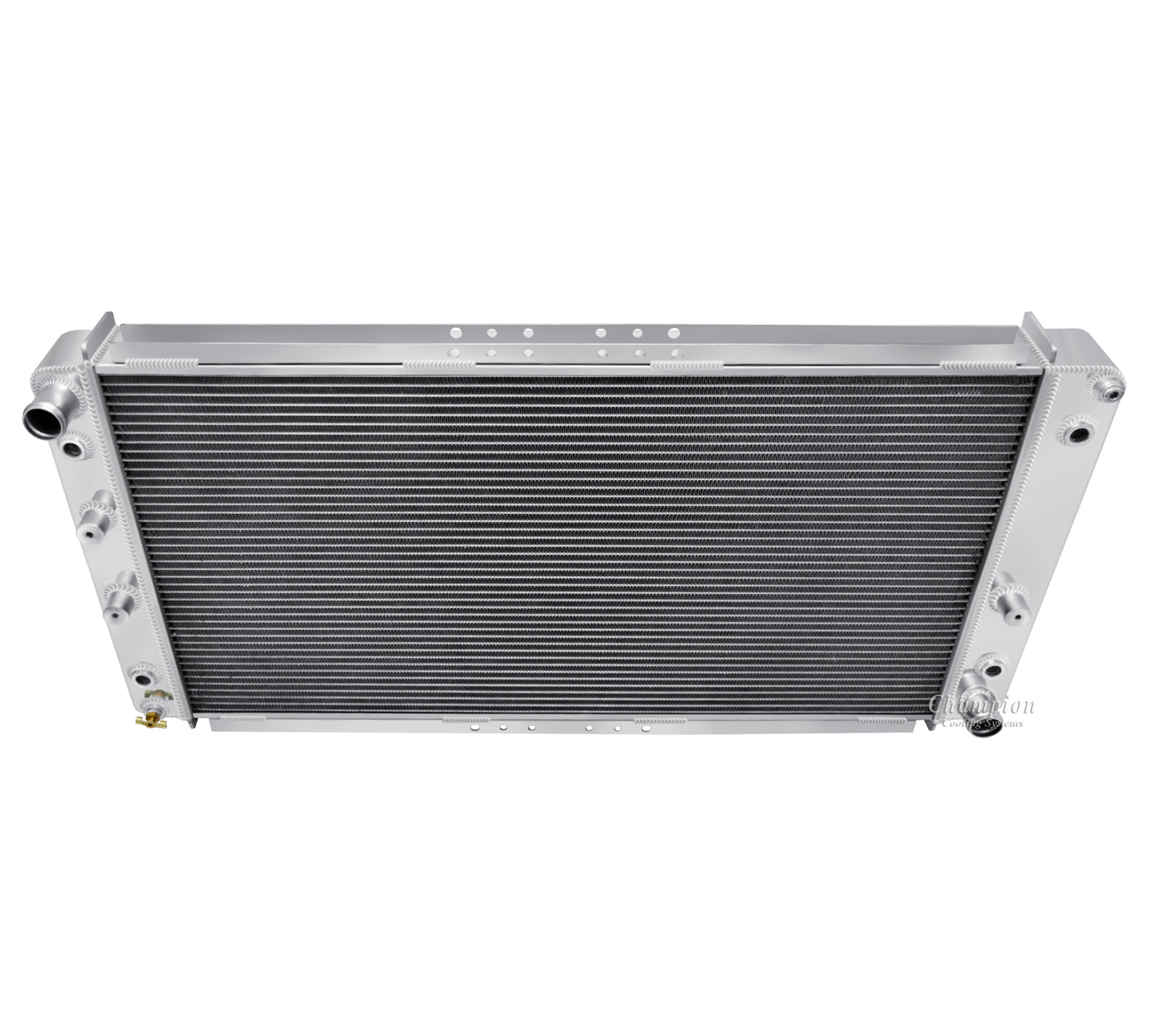

1994-1996 Chevy Caprice 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 19" tall (20.13" with cap) x 35.25” wide
Core: 17.25” tall x 30.5" wide x 2.25" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Transmission Cooler Included (5/8-18 UNF)
Engine Oil Cooler Included (5/8-18 UNF)

Whats Included

3-Row Radiator
13lb. Radiator Cap included

Transmission Cooler Included (5/8-18 UNF)
Engine Oil Cooler Included (5/8-18 UNF)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
