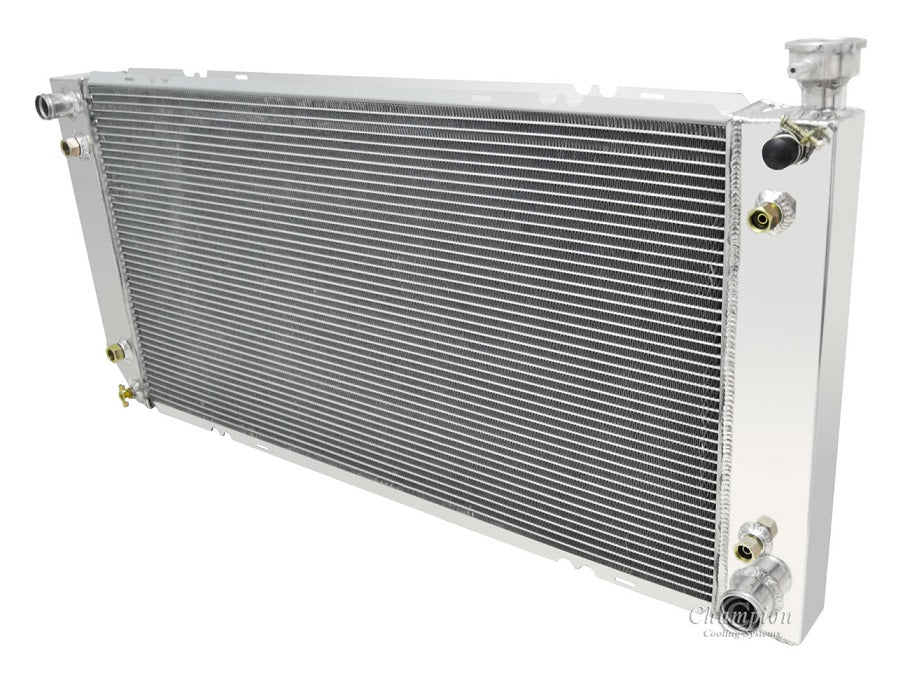

1994-2000 Chevy Truck 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 20.38" tall x 40.58" wide
Core: 17.25" tall x 34" wide x 2.25" thick
Inlet: 1.31" driver side
Outlet: 1.55" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Whats Included

- Saddle Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/2"- 20 straight thread w/ 5/8"-18 adapter)
- Engine oil Cooler included (M20 x 1.5 w/ quick disconnect adapter)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
