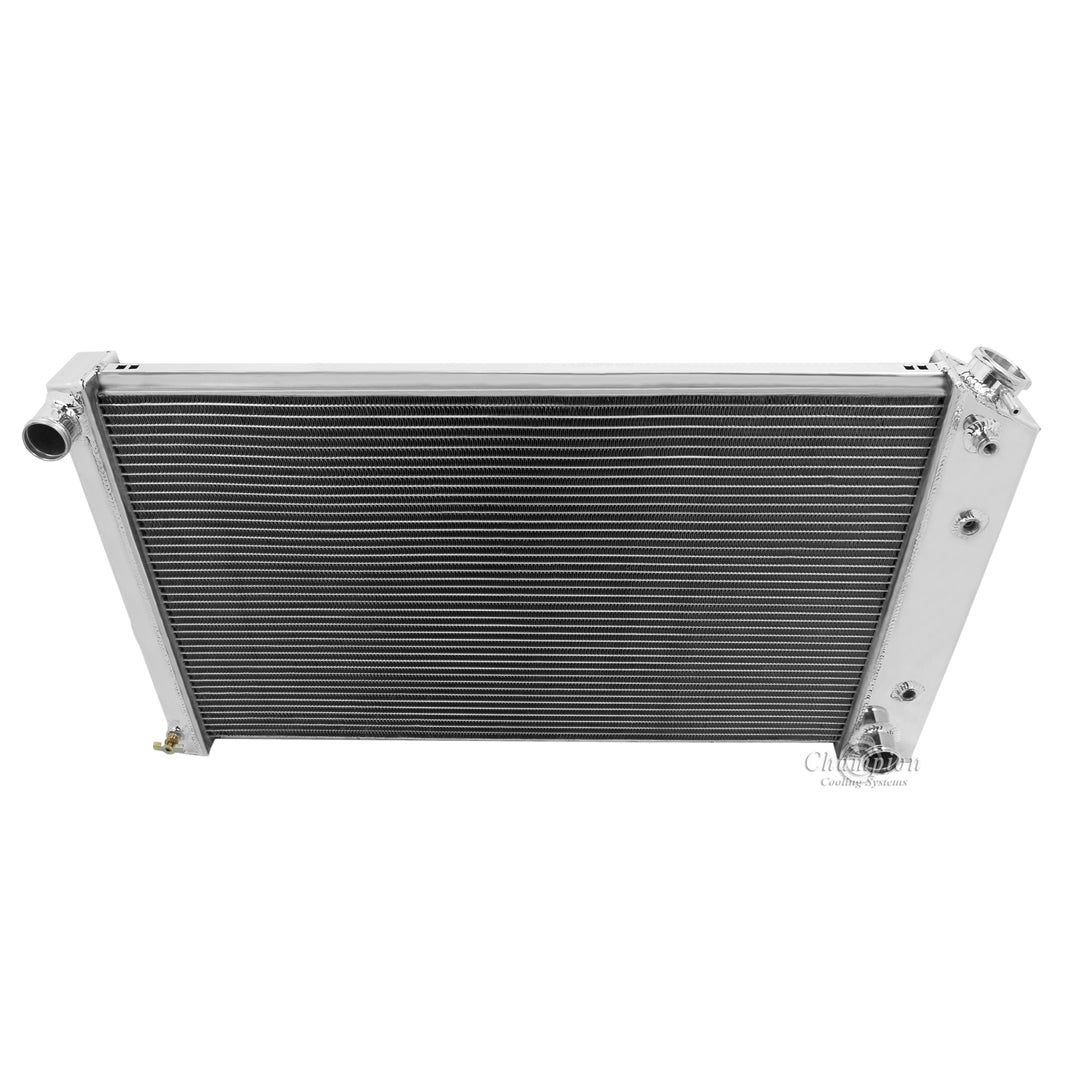

1966-1977 Oldsmobile Cutlass 3-Row Radiator
3-Row Core | Cools up to 1000hp
Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16.13” tall x 25” wide x 2.5" thick
Inlet: 1.5” driver side
Outlet: 1.75” passenger side
Tanks: 2.75” thick
Tubes: 0.75" thick
Whats Included
3-Row Radiator
Saddle Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Add On Options
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
POLISHED OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
48" Polished Stainless Steel Radiator Hose Kit:
4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
Core Size
Core Size
Application
Application
Oldsmobile / Cutlass
Add On Options
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
STAINLESS OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
