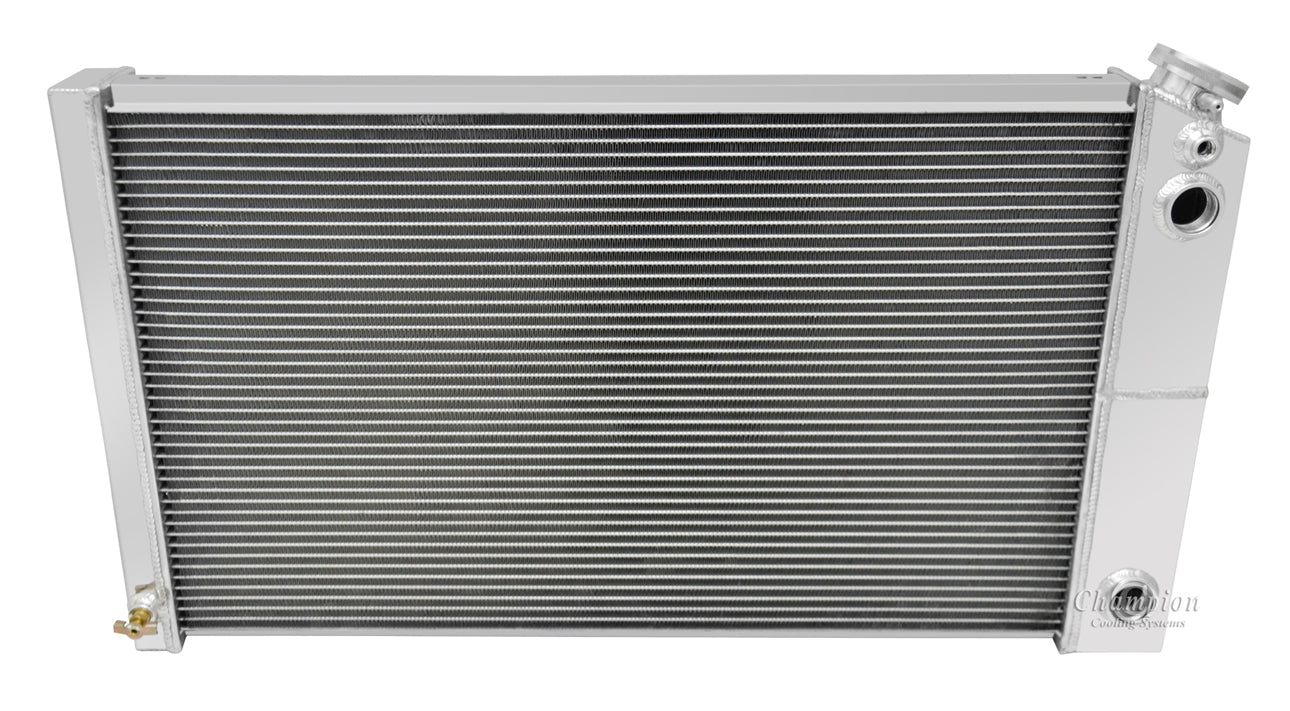

LS Swap 3-Row Radiator - 18.63" tall x 33" wide - Champion Radiator

Radiator Dimensions:

Total: 18.63" tall (19" with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: (Choice your size) passenger side
Outlet: (Choice your size) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Whats Included

Saddle Mounted
16lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included

SPAL High Performance Series -2042
14" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 15.04"
B: Depth 3.47"
C: Width 14.45"

CFM: 1864
AMP Draw: 17 Amps

Turbo High Performance Series
14" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 13.56"
B: Depth 2.05"
C: Width 14.20"

CFM: 1727
AMP Draw: 14.2 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)

16AN Hose Kit

Complete your install with a clean look braided an hose line and swivel ends.
