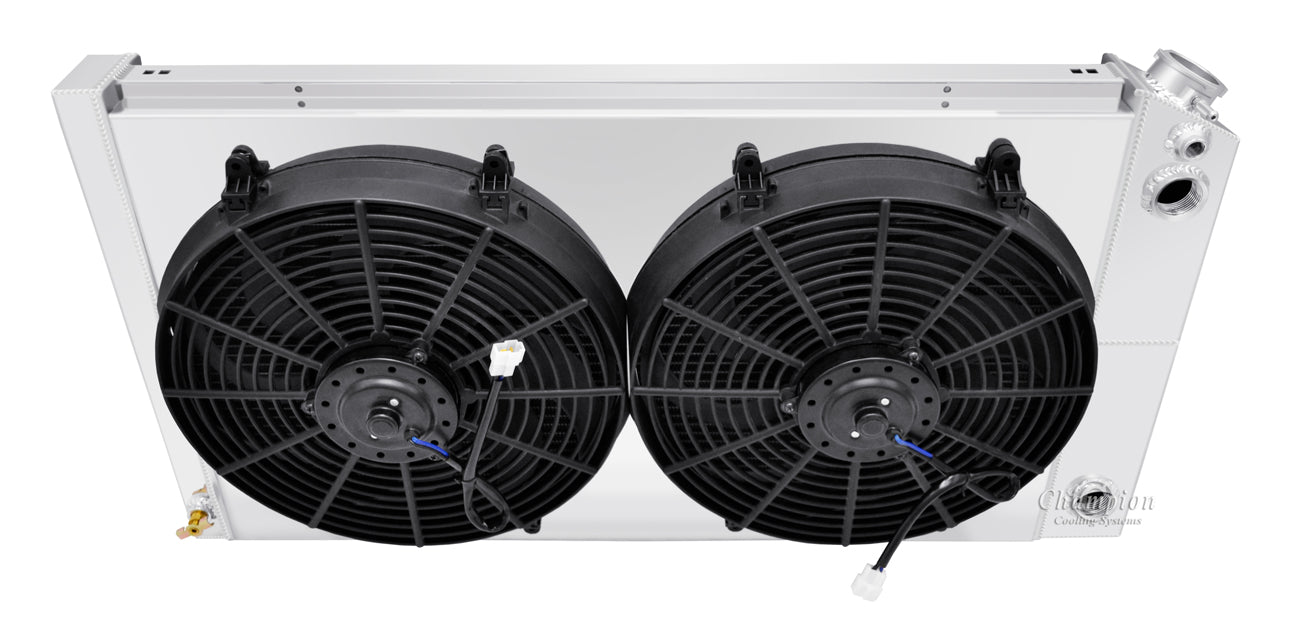

1980-1990 Chevy Caprice LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator
1980-1990 Chevy Caprice LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator
Couldn't load pickup availability
1980-1990 Chevy Caprice LS Swap 3- ROW 14" Fans & SHROUD COMBO
3-Row Core | Cools up to 1000hp
Dual Pass / LS Conversions
Upgrade your 1980-1990 Chevy Caprice with this high-performance LS Swap 3-Row Radiator, Shroud, and Dual Fan Combo. Designed to efficiently cool up to a 1000hp LS motor, this premium cooling system ensures optimal engine temperature, even under extreme conditions. Whether you're building a street machine or a track-ready car, this combo offers superior cooling performance, reliability, and durability. Perfect for Chevy Caprice owners looking to get the most out of their LS swap. Enhance your engine’s longevity and performance with this top-quality radiator setup.
Radiator Dimensions:
Total: 18.63" tall (19" with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Whats Included
- 14" Fans
- Saddle Mounted
- 16 lb. Billet Radiator Cap included
- Steam Port with 1/4" barbed fitting and plug included
- Aluminum shroud
ALL Aluminum Core Dual-Pass Features
Add On Options
Fan Upgrades:
SPAL High Performance Series -2044
13" Cooling Fan
Curved Blade - Pull
Specifications:
A: Length 14.17"
B: Depth 3.45"
C: Width 13.62"
CFM: 1777
AMP Draw: 19.5 Amps
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
POLISHED OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
48" Polished Stainless Steel Radiator Hose Kit:
4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
16AN Hose Kit
Complete your install with a clean look braided an hose line and swivel ends.
Core Size
Core Size
Application
Application
Chevy / Caprice
Add On Options
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
STAINLESS OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
