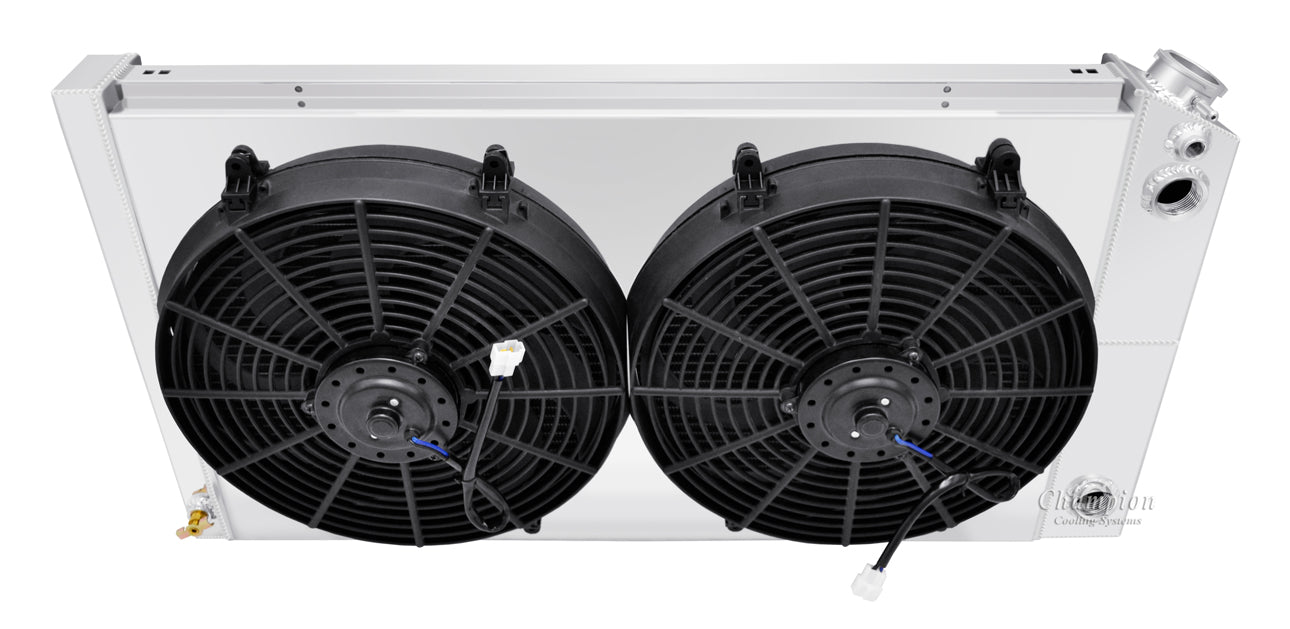

1968-1977 Chevy El Camino LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

1968-1977 Chevy El Camino LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

$508.98 USD
$508.98 USD
Sale Sold out

1968-1977 Chevy El Camino LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Upgrade the cooling system in your 1968-1977 Chevy El Camino with the Champion LS Swap 3-Row Radiator, Shroud, and Dual Fan Combo. Specifically engineered for LS engine swaps, this high-performance cooling solution includes a 3-row aluminum radiator, a custom-fit shroud, and dual electric fans to ensure maximum airflow and efficient heat dissipation. Designed to handle the increased cooling demands of modern LS engines, this combo keeps your engine cool during both daily driving and high-performance use. Easy to install and built for durability, the Champion Radiator is the ideal choice for your El Camino LS swap project.

1968-1977 Chevy El Camino LS Swap 3- ROW 14" Fans & SHROUD COMBO

3-Row Core | Cools up to 1000hp

Dual Pass / LS Conversions
Outlets sold separately

Core Size

  • 3 Row

Application

1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, and 1977

Chevy / El Camino

View full details

Dimensions

Total: 18.63" tall (19" with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Whats Included

- 14" Fans
- Saddle Mounted
- 16 lb. Billet Radiator Cap included
- Steam Port with 1/4" barbed fitting and plug included
- Aluminum shroud

Add On Options

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

STAINLESS OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
