1970-1977 Chevy Monte Carlo LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

1970-1977 Chevy Monte Carlo LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

$508.98 USD
$508.98 USD
Sale Sold out

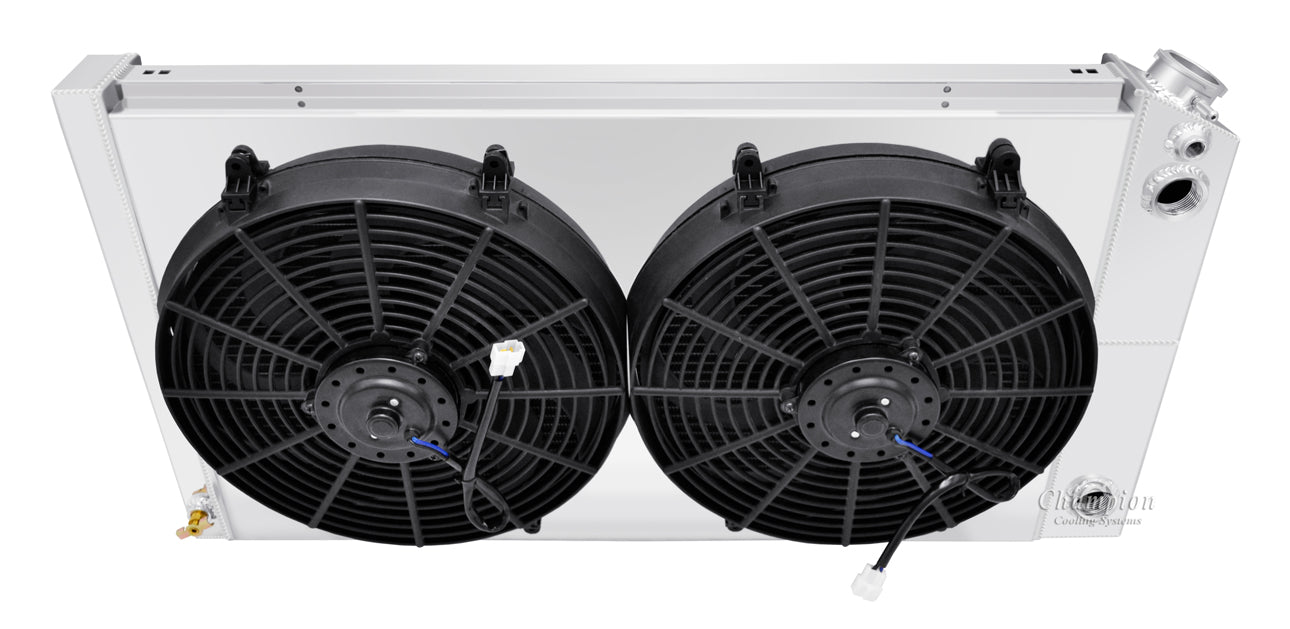

1970-1977 Chevy Monte Carlo LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Upgrade your 1970-1977 Chevy Monte Carlo with the Champion LS Swap 3-Row Radiator, Shroud, and Dual Fan Combo for exceptional cooling performance. Designed specifically for LS engine swaps, this high-quality package includes a 3-row aluminum radiator, a custom-fit shroud, and dual electric fans to ensure maximum airflow and efficient heat dissipation. Perfect for handling the increased cooling demands of modern LS engines, this combo keeps your engine cool under both daily driving and high-performance conditions. Easy to install, durable, and built to last, the Champion Radiator is the ideal cooling solution for your Monte Carlo LS swap project.

1970-1977 Chevy Monte Carlo LS Swap 3- ROW 14" Fans & SHROUD COMBO

3-Row Core | Cools up to 1000hp

Dual Pass / LS Conversions
Outlets sold separately

Core Size

  • 3 Row

Application

1970, 1971, 1972, 1973, 1974, 1975, 1976, and 1977

Chevy / Chevy Monte

View full details

Dimensions

Total: 18.63" tall (19" with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Whats Included

- 14" Fans
- Saddle Mounted
- 16 lb. Billet Radiator Cap included
- Steam Port with 1/4" barbed fitting and plug included
- Aluminum shroud

Add On Options

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

STAINLESS OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
