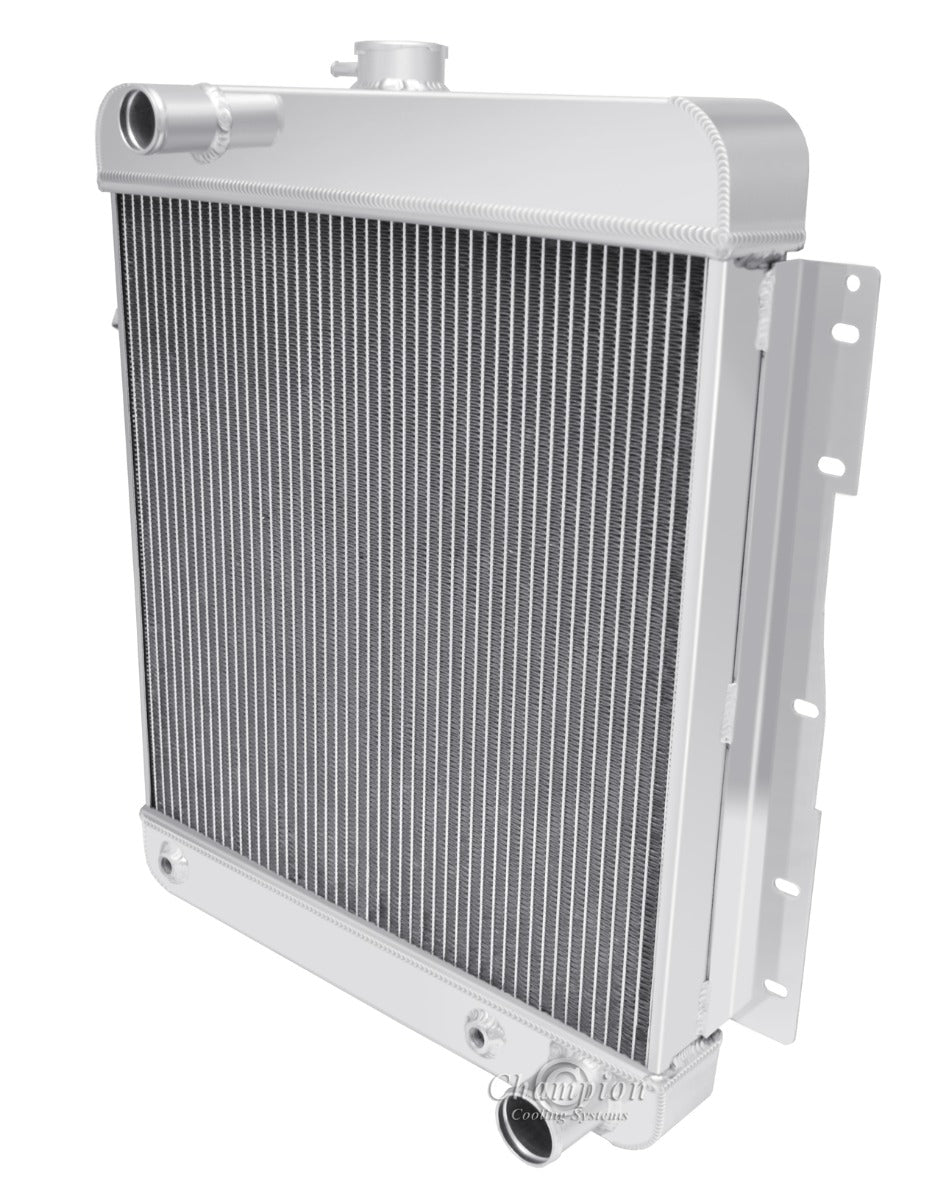

1958 Chevy Belair 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 23.75" tall (24.875" with cap) x 23.5" (including brackets)
Core: 18" tall x 18.875" wide x 2." thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: Upper tank 3.13"thick
Lower tank 2.63 thick
Tubes: 0.63" thick

Bracket Mounted

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/2"- 20 straight thread)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
