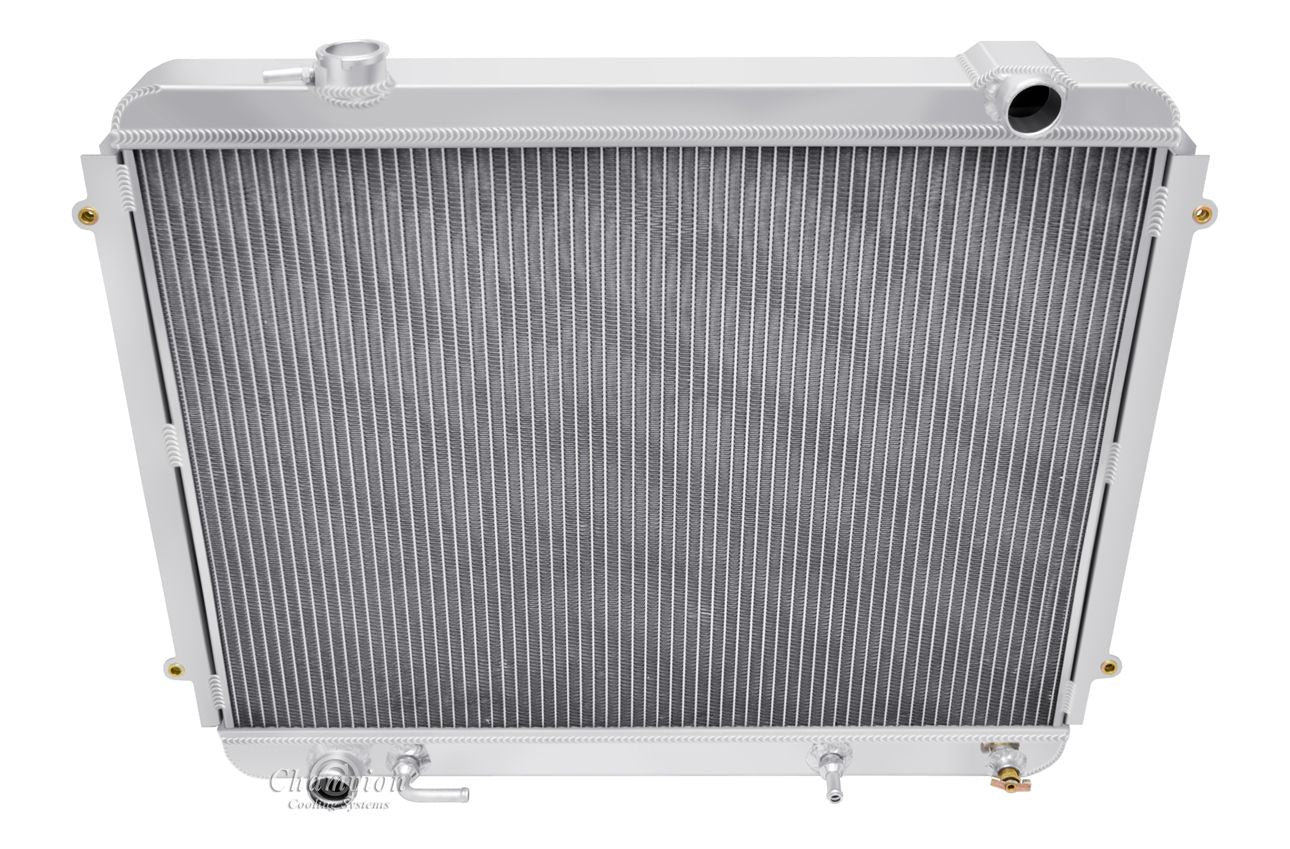

1995-2004 Toyota Tacoma 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 23.5 x 28.13 wide (including brackets)
Core:18.875" tall x 25.13" wide x 2" thick
Inlet: 1.38" passenger
Outlet: 1.38” driver
Tanks: 2.5" thick
Tubes: 0.68" thick

Bracket Mounted

*Please verify height:
Prerunner applications sometimes used the
4WD radiator which is 2" taller. The extra height
is all at the bottom of the radiator.

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (M14-1.5)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
