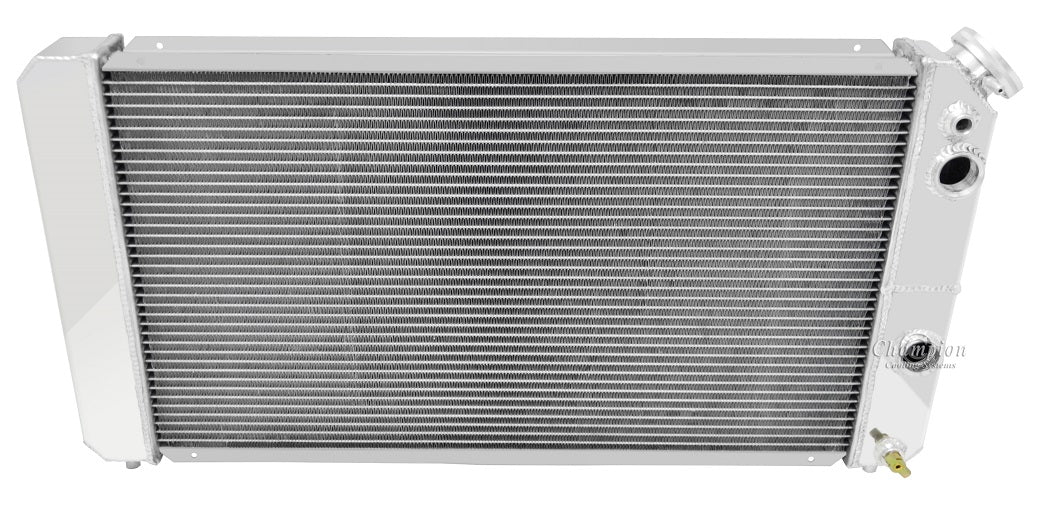

LS Swap 3-Row Radiator - 16.25 Tall x 32" Wide - Champion Radiator
LS Swap 3-Row Radiator - 16.25 Tall x 32" Wide - Champion Radiator
Couldn't load pickup availability
16.25 Tall x 32" Wide - LS Swap Radiator - Universal
3-Row Core | Cools up to 800hp
Dual Pass / LS Conversions
Radiator Dimensions:
16.25"(18" incl pins) tall x 32" wide
Core: 14.75" tall x 26.25" wide x 2" thick
Inlet: (Choice your size) passenger side
Outlet: (Choice your size) passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick
Whats Included
Saddle Mounted
16lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
ALL Aluminum Core Dual-Pass Features
Inlet / Outlet Fitting Options
Add On Options
Fan Upgrades:
SPAL High Performance Series -2029
12" Cooling Fan
Curved Blade - Pull
Specifications:
A: Length 13.03"
B: Depth 3.45"
C: Width 12.64"
CFM: 1451
AMP Draw: 14.5 Amps
Turbo High Performance Series
12" Cooling Fan
Curved Blade - Pull
Specifications:
A: Length 12.19"
B: Depth 2.05"
C: Width 11.57"
CFM: 1031
AMP Draw: 9 Amps
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
POLISHED OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
48" Polished Stainless Steel Radiator Hose Kit:
4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
16AN Hose Kit
Complete your install with a clean look braided an hose line and swivel ends.
Core Size
Core Size
- 3 Row
Application
Application
Universal /
Share

Dimensions
Whats Included

Add On Options
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
STAINLESS OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
