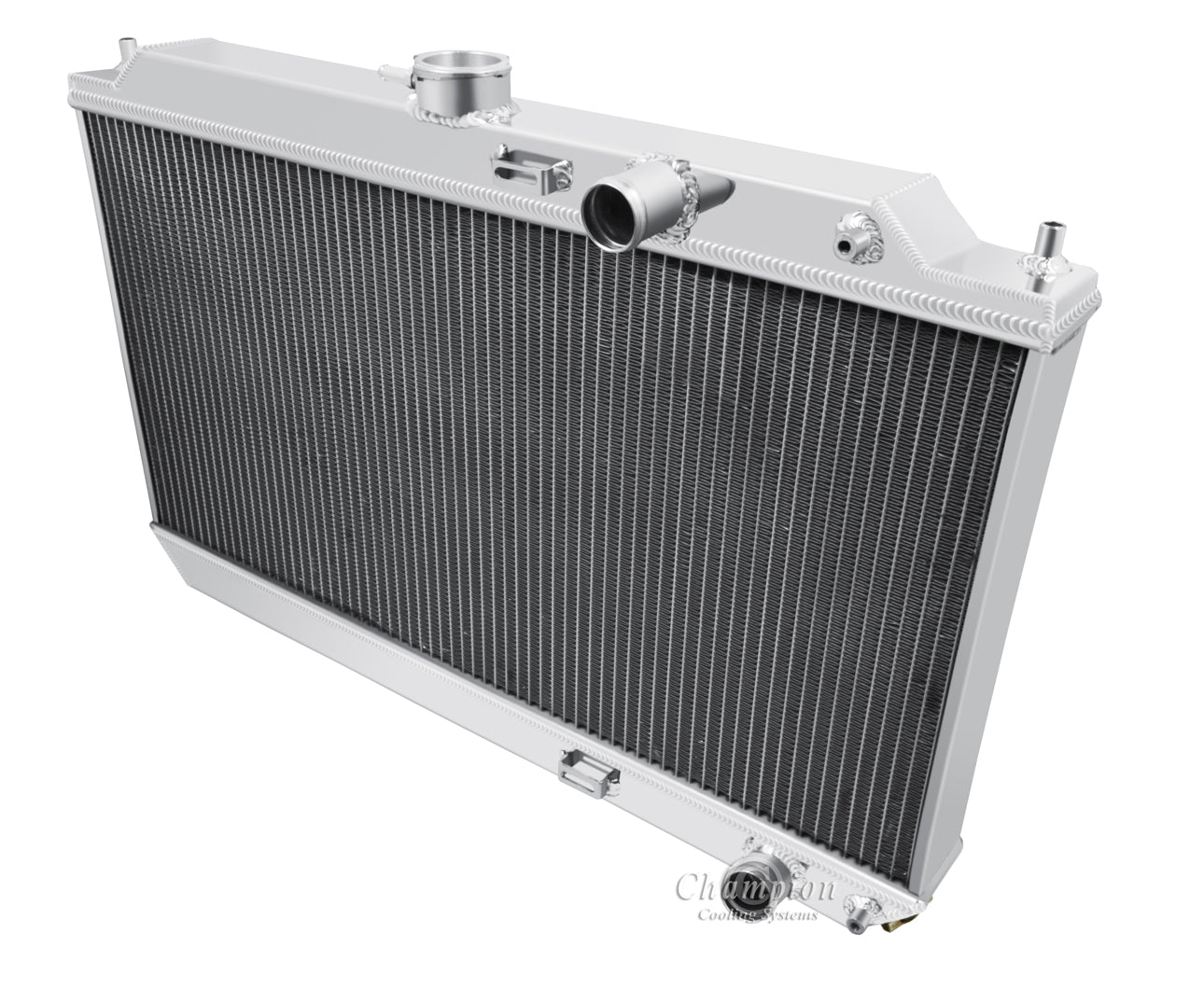

1990-1993 Acura Integra 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 18.38" tall x 26.75" wide
Core: 13" tall x 26.75" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.25" passenger side
Tanks: 2.75" thick
Tubes: .63" thick

Pin Mounted
***Transmission Cooler NOT included

Whats Included

3-Row Radiator
13lb. Radiator Cap included

Transmission Cooler NOT included

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
