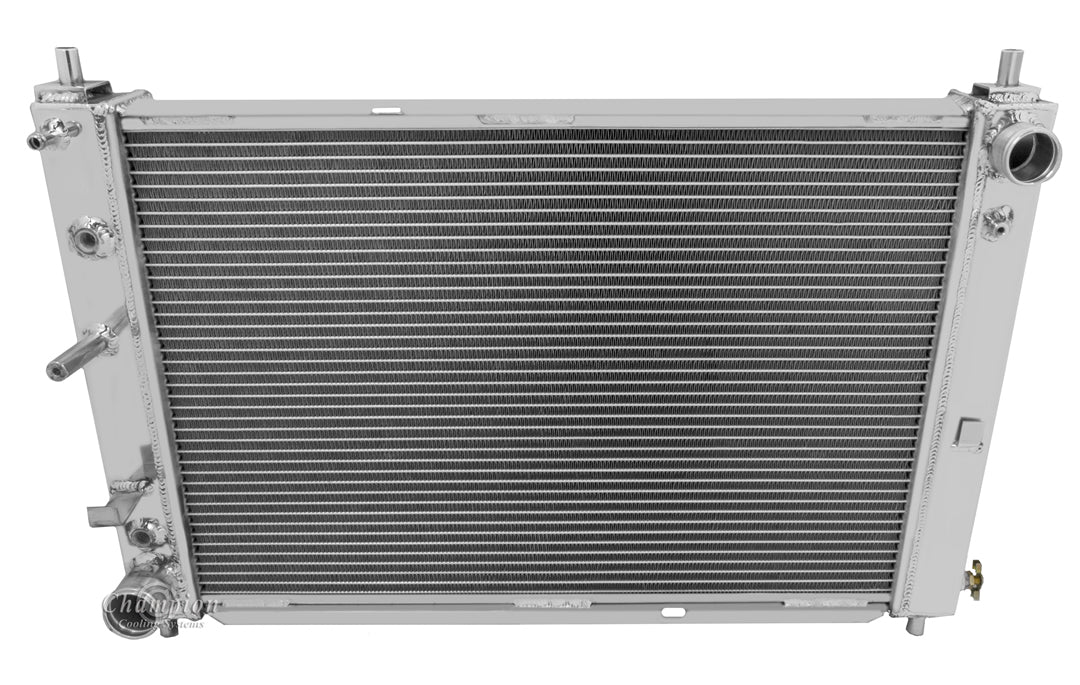

1997-2004 Mustang 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 19.75" tall x 31.75" wide
Core: 16.75" tall x 25.5" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Pin Mounted

Whats Included

- Pin Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/4-18npt)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
