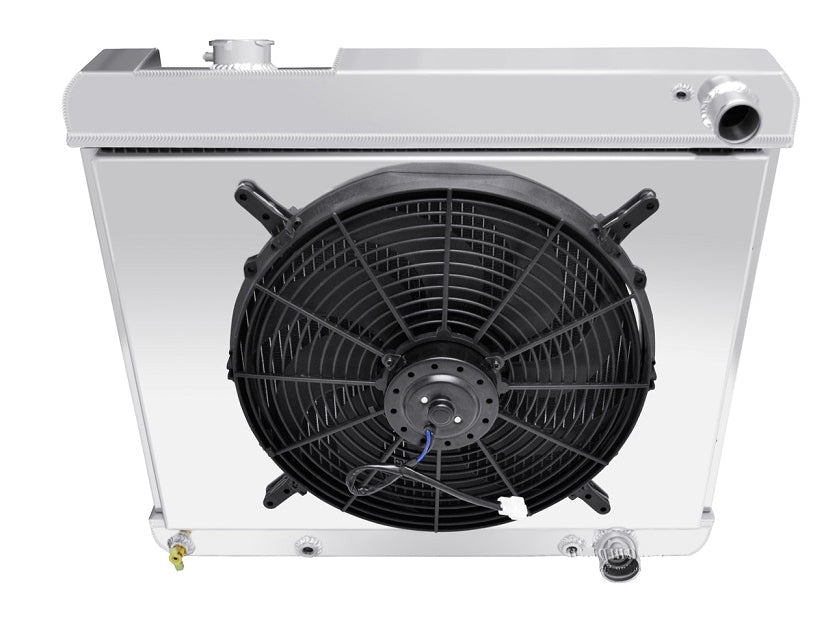

1960-1965 Cadillac Deville LS Swap 3-Row Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.8" tall x 22.75" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger Side
Tanks: (top) 2.75" thick, (bottom) 2.38" thick
Tubes: 0.63" thick
Total Thickness: 6"

*Verify clearance for electric fan
Total thickness: 6.5" to fan motor

Whats Included

- 16" Fan
- Saddle Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
- Aluminum shroud
- Steam port added for ls motors

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
