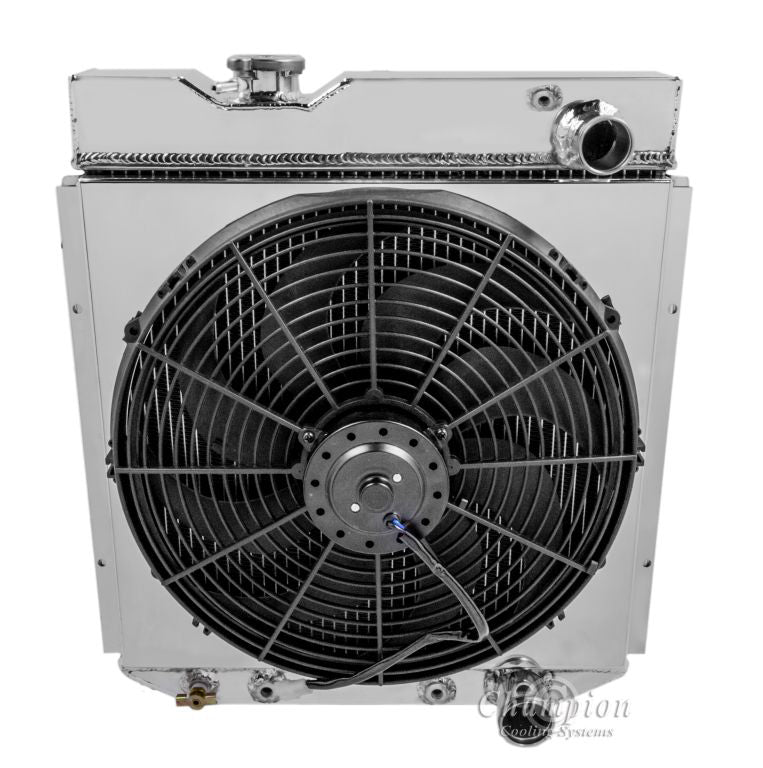

1960-1965 Ford Falcon LS Swap 3-Row Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.38" tall x 17.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.5" to back of fan

Whats Included

16" Fan
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum shroud
Steam port added for LS Motors

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
