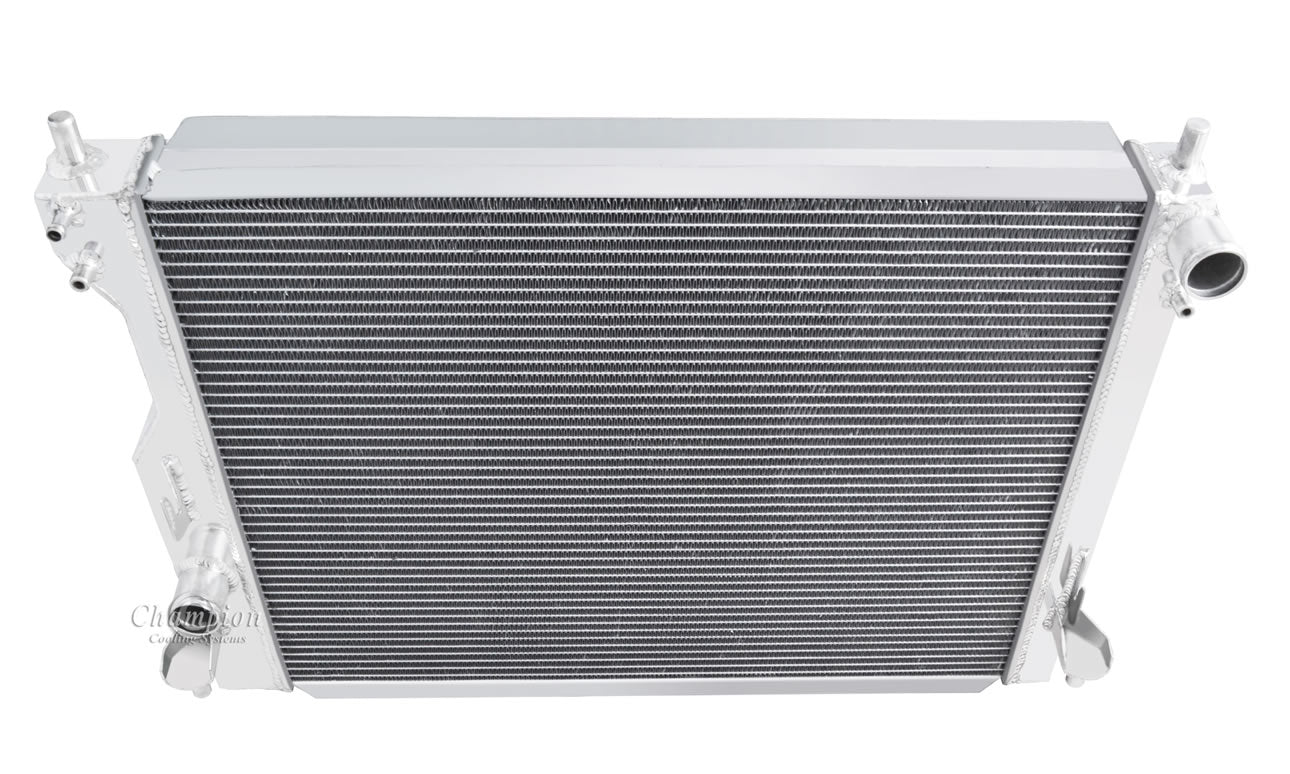

2005-2014 Mustang 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 21.5" tall x 29.75" wide
Core: 19.25" tall x 24.13" wide x 1.75" thick
Inlet: 1..5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Pin Mounted

Compatible with:
2005-2014 Ford Mustang 3.7L, 4.0L, 4.6L, 5.0L

Whats Included

- Pin Mounted
- 13lb. Radiator Cap included
- Transmission Cooler NOT Included

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
