1959-1963 Impala LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

1959-1963 Impala LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

$504.98 USD
$504.98 USD
Sale Sold out

1959-1963 Impala LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Upgrade your 1959-1963 Chevy Impala with the Champion LS Swap 3-Row Radiator, Shroud, and Dual Fan Combo for optimal cooling performance. Designed specifically for LS engine swaps, this high-performance cooling system includes a 3-row aluminum radiator, a custom-fit shroud, and dual electric fans to provide maximum airflow and efficient heat dissipation. Built to handle the increased cooling demands of modern LS engines, this combo ensures your engine stays cool during both daily driving and performance driving. Easy to install, highly durable, and engineered for superior cooling efficiency, the Champion Radiator is the perfect choice for your Impala LS swap project.

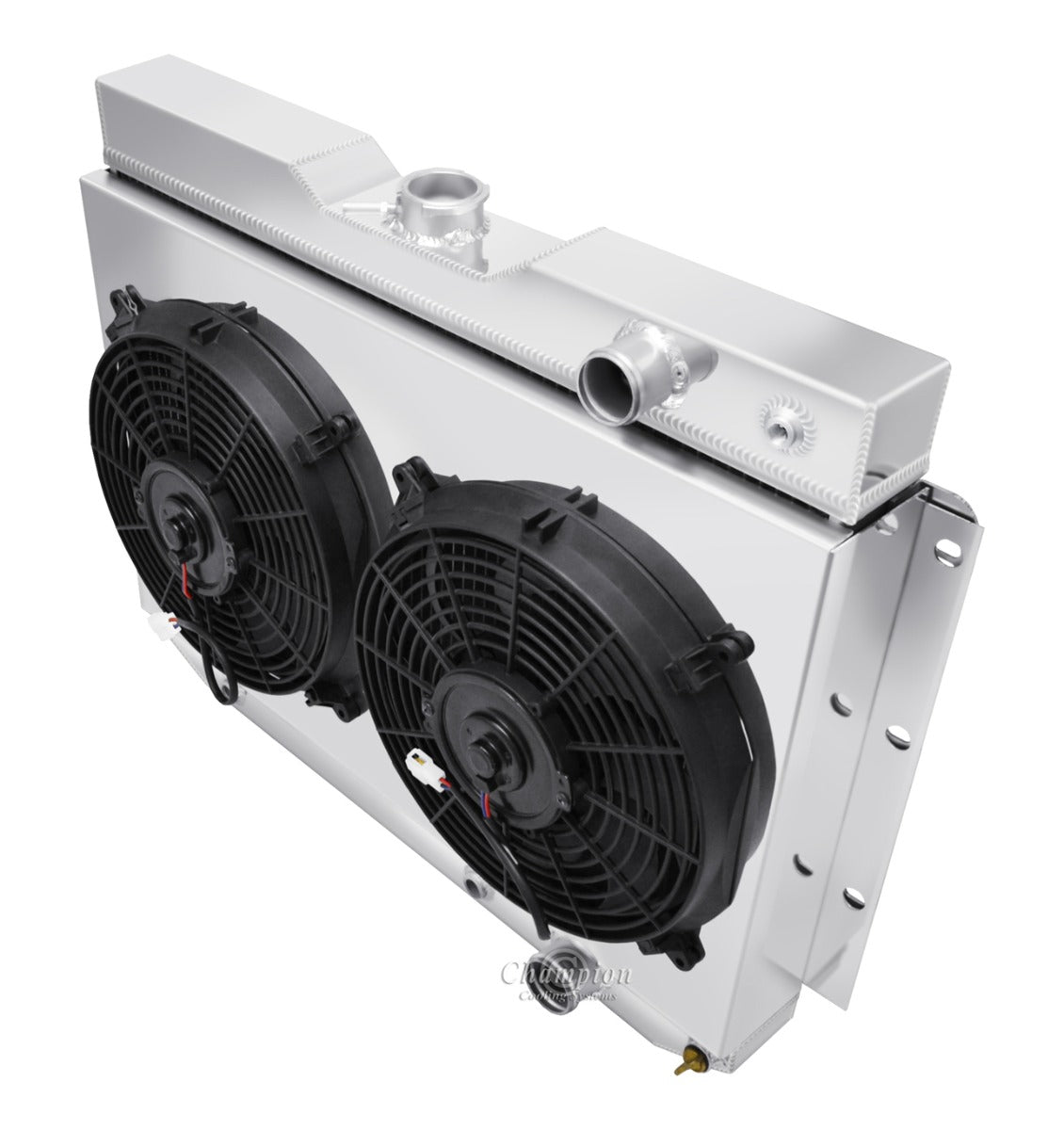

3- ROW 1959-1963 Impala Radiator 12" Fans & SHROUD COMBO

3-Row Core | Cools up to 650hp

Core Size

  • 3 Row

Application

1959, 1960, 1961, 1962, and 1963

Chevy / Impala

View full details

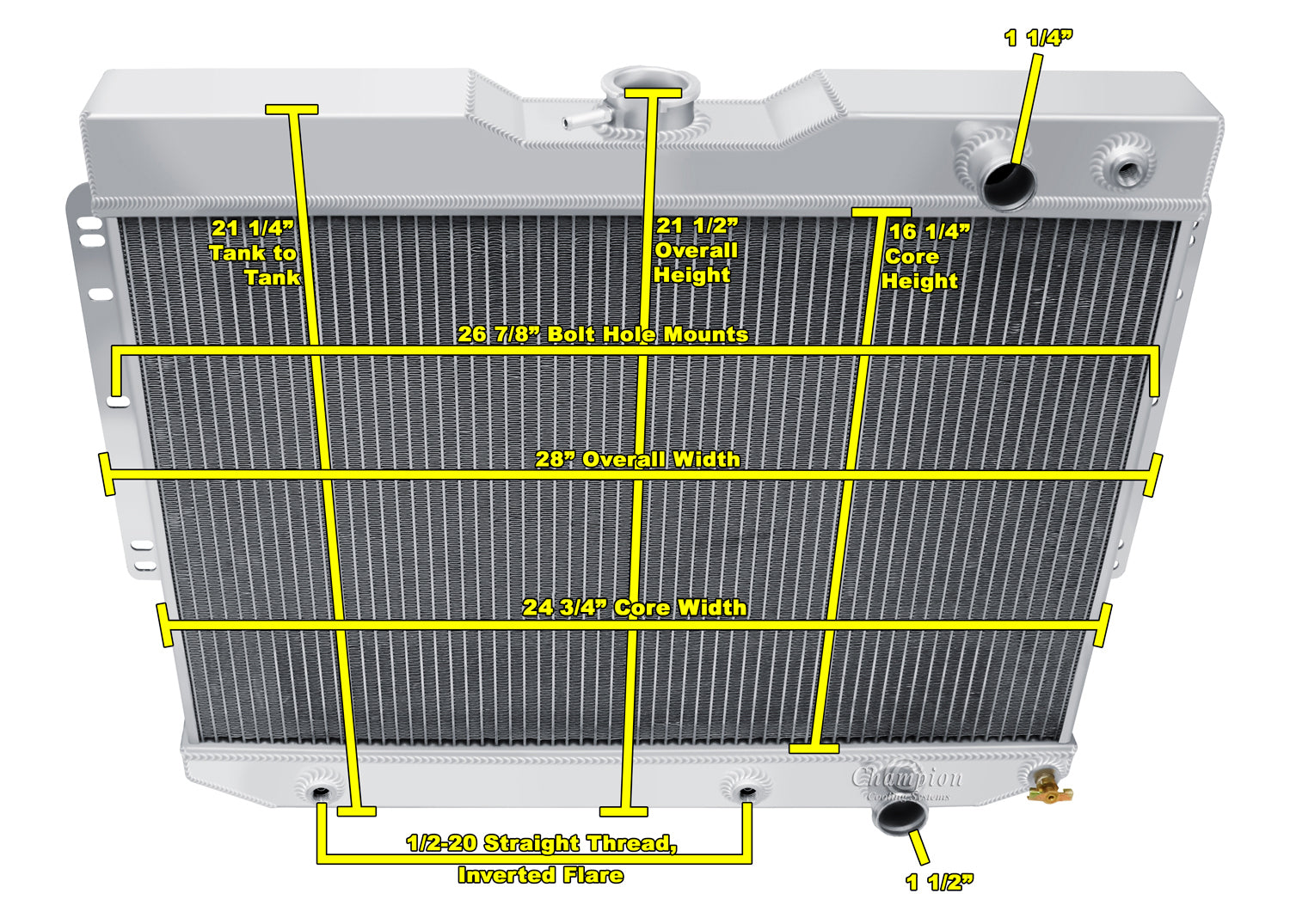

Dimensions

Total: 21.75" tall x 28" wide (including brackets)
Core: 16.5" tall x 24.75" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 5.63" to back of fan

*Added Steam port for LS Motors

DOES NOT WORK WITH GMC 605 STEERING BOX

Whats Included

12" Fans (850 cfm each)
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud

Add On Options

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

STAINLESS OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
