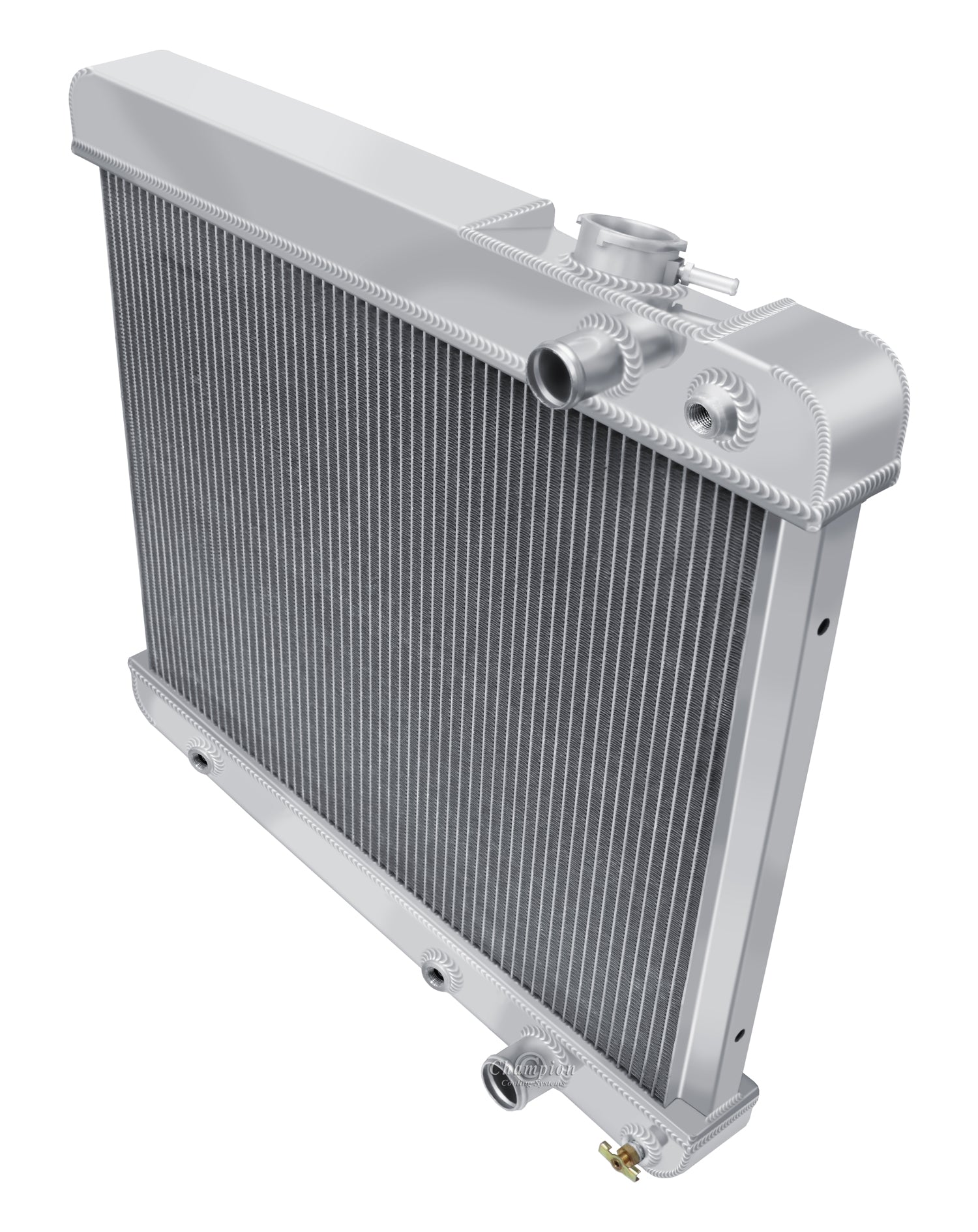

1963-1966 Chevy C10 Truck LS Swap 3-Row Radiator, Shroud, Fan Combo - Champion Radiator
Optimize the cooling system of your 1963-1966 Chevy C10 Truck LS Swap with the Champion Radiator 3-Row Radiator, Shroud, and Fan Combo. Designed specifically for LS engine swaps, this high-performance combo includes a durable 3-row aluminum radiator, a custom-fit shroud, and dual high-flow fans, ensuring superior engine cooling and preventing overheating. Perfect for performance upgrades and restoration projects, this system offers efficient heat dissipation and optimal airflow, keeping your Chevy C10 cool under all driving conditions. With easy installation and long-lasting reliability, the Champion Radiator combo is the ideal solution to maintain the performance and efficiency of your LS-swapped Chevy C10.

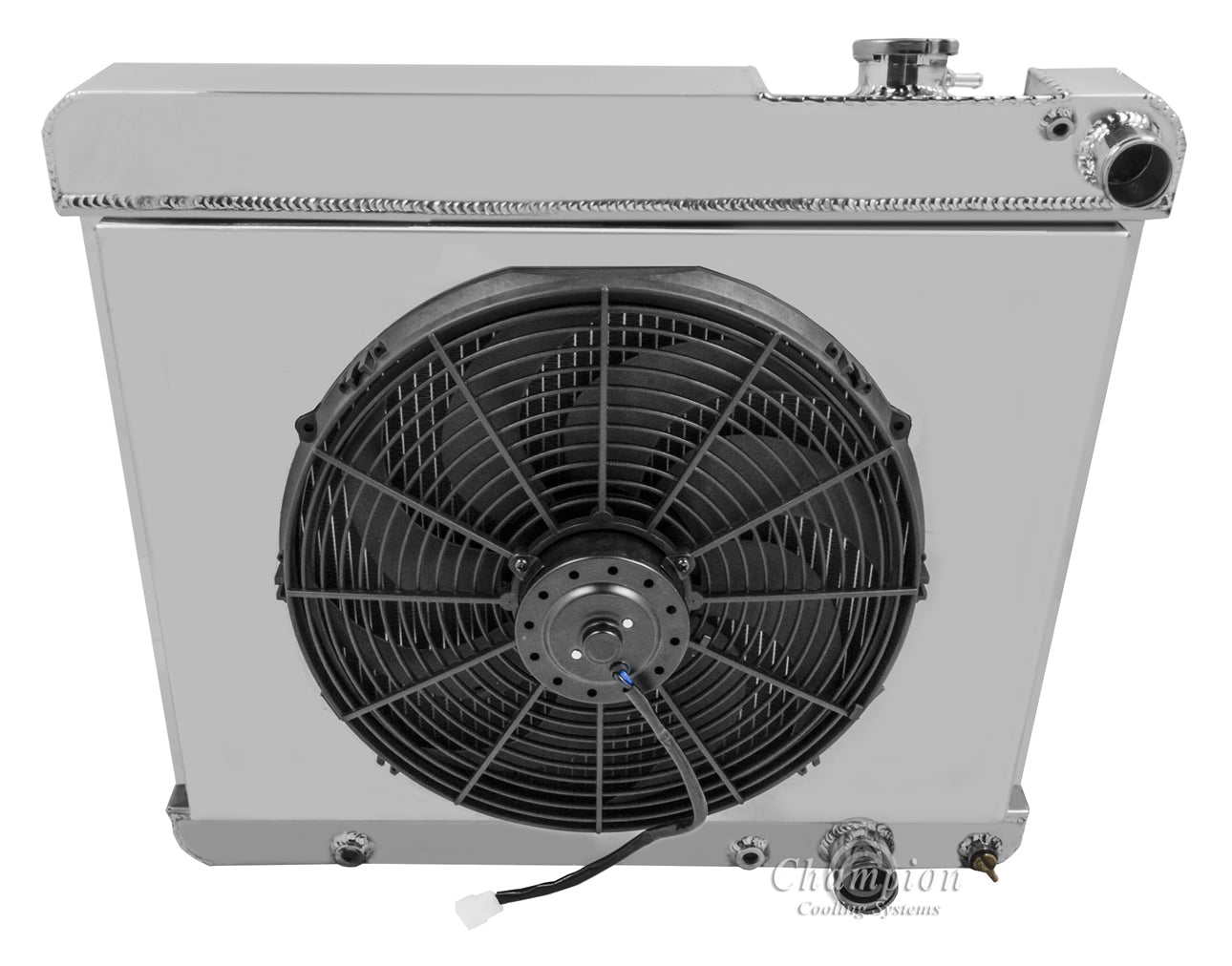

1963-1966 Chevy C10 Truck 3- ROW 16" Fan & SHROUD COMBO
3-Row Core | Cools up to 600hp
Core Size
Core Size
- 3 Row
Application
Application
1963, 1964, 1965, and 1966
Chevy / Truck
Share

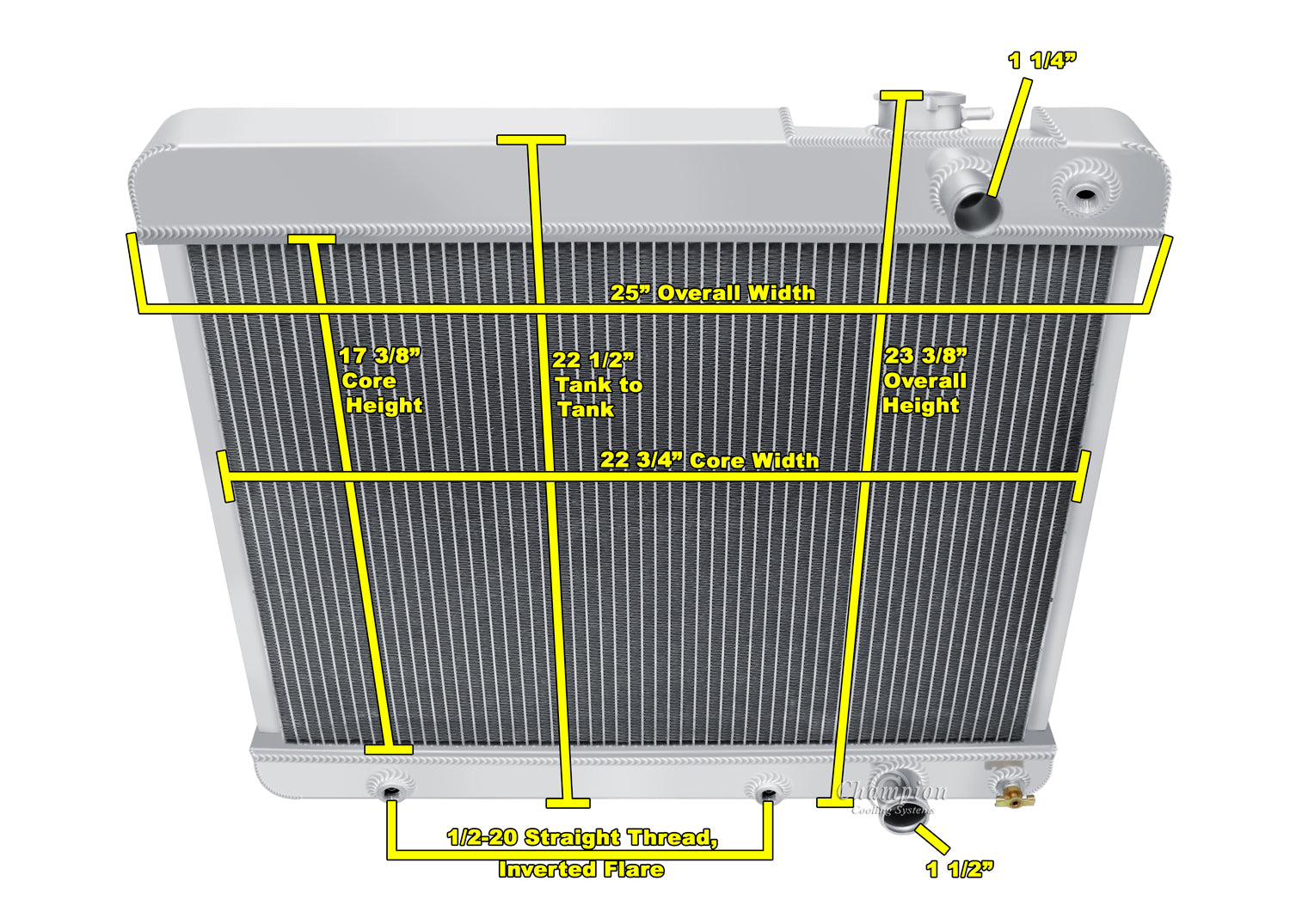

Dimensions
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 1.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick (top); 2.38" thick (bottom)
Tubes: 0.75" thick
Verify clearance for electric fan
Total thickness: 6.5" to fan motor

Whats Included
16" Fan
Saddle Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud
Steam port added for LS Motors

Add On Options
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
STAINLESS OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
