1966-1968 Chevy Caprice LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

1966-1968 Chevy Caprice LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

$504.98 USD
$504.98 USD
Sale Sold out

1966-1968 Chevy Caprice LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

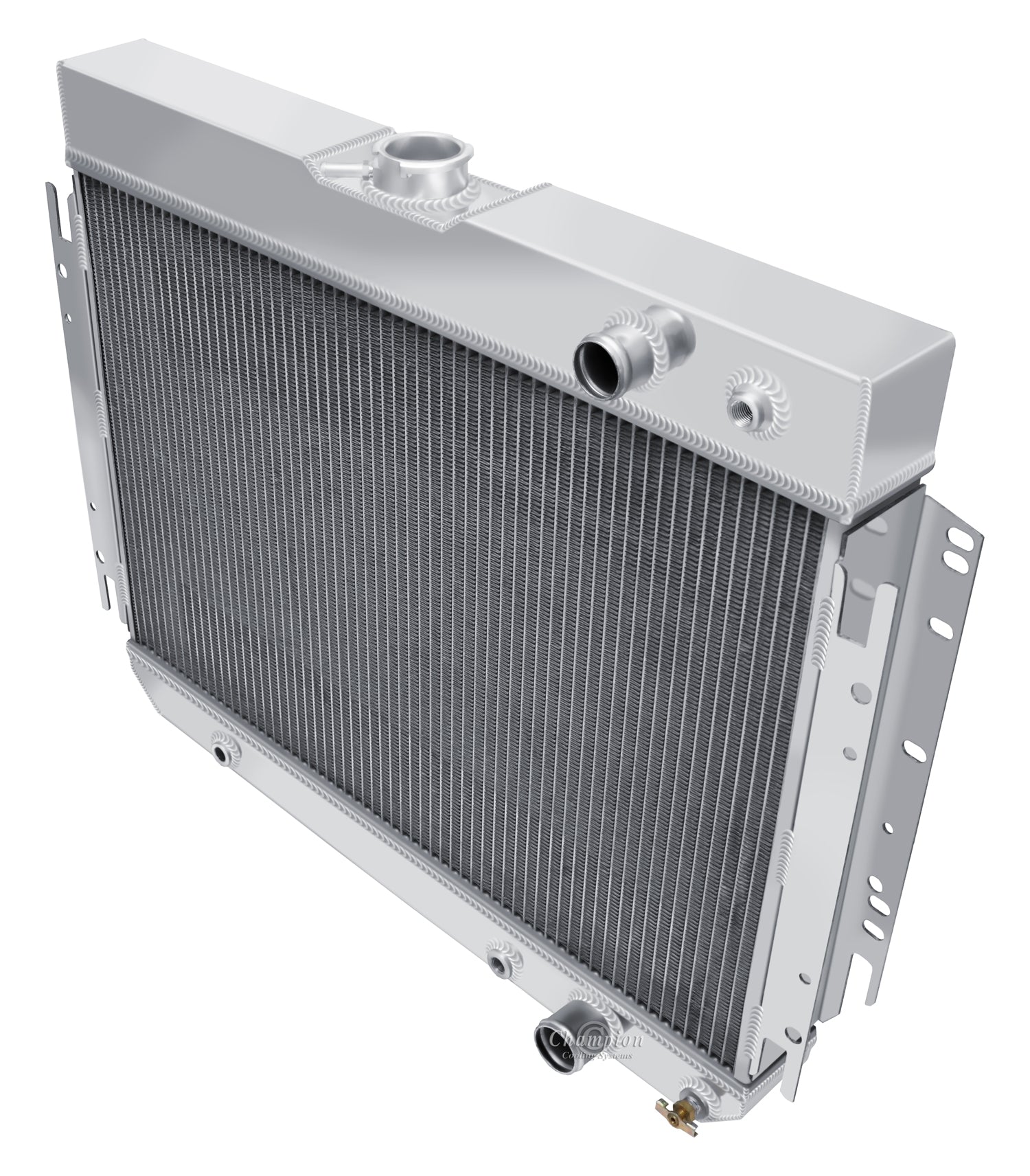

Upgrade your 1966-1968 Chevy Caprice with the Champion LS Swap 3-Row Radiator, Shroud, and Dual Fan Combo for superior cooling performance. Designed specifically for LS engine swaps, this high-performance cooling system includes a 3-row aluminum radiator, a precision-fit shroud, and dual high-flow electric fans for optimal heat dissipation and airflow. Perfect for handling the increased heat demands of modern LS engines, this combo provides reliable engine cooling during both daily driving and performance applications. Easy to install and built for durability, the Champion Radiator ensures long-lasting reliability and efficient cooling for your Chevy Caprice LS swap project.

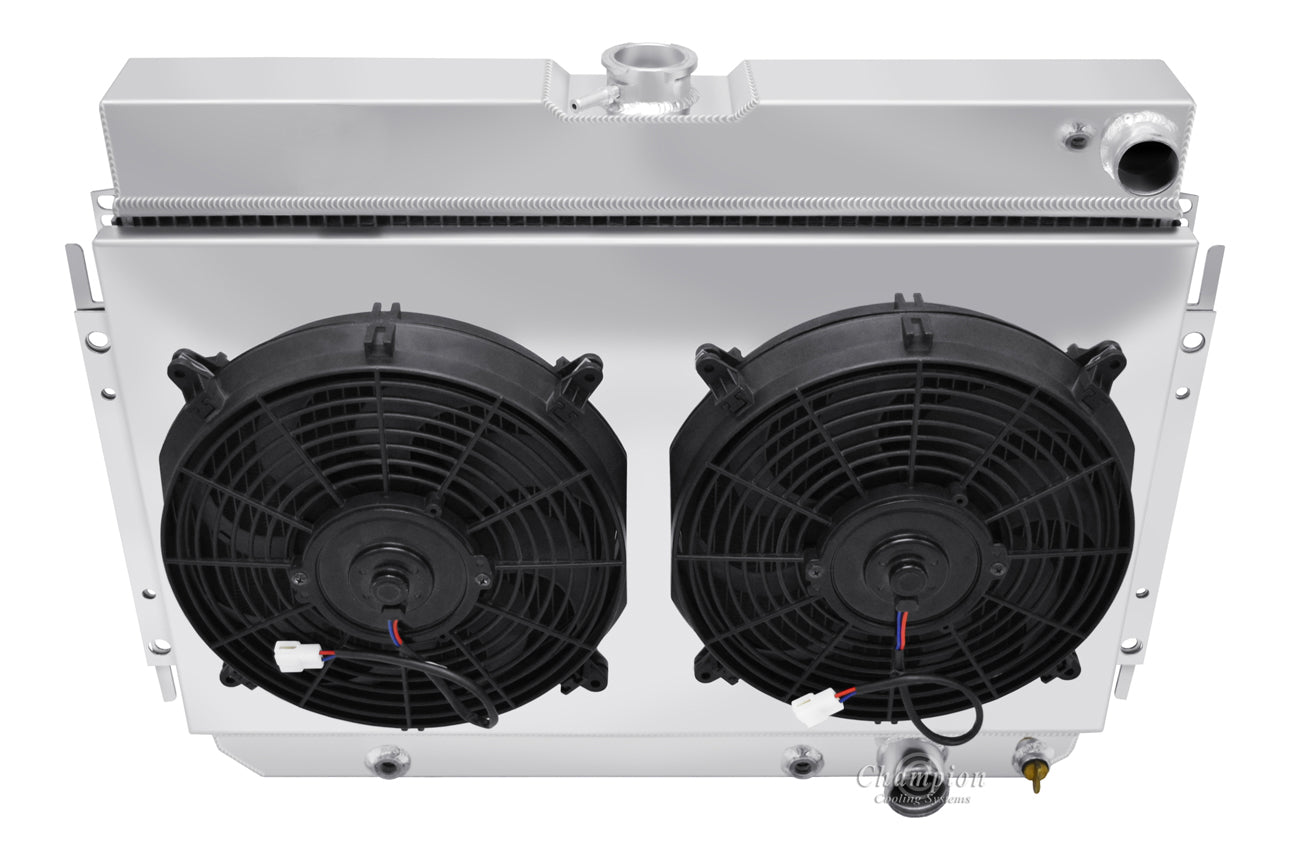

3- ROW 1966-1968 Chevy Caprice Radiator 12" Fans & SHROUD COMBO

3-Row Core | Cools up to 700hp

Core Size

  • 3 Row

Application

1966, 1967, and 1968

Chevy / Caprice

View full details

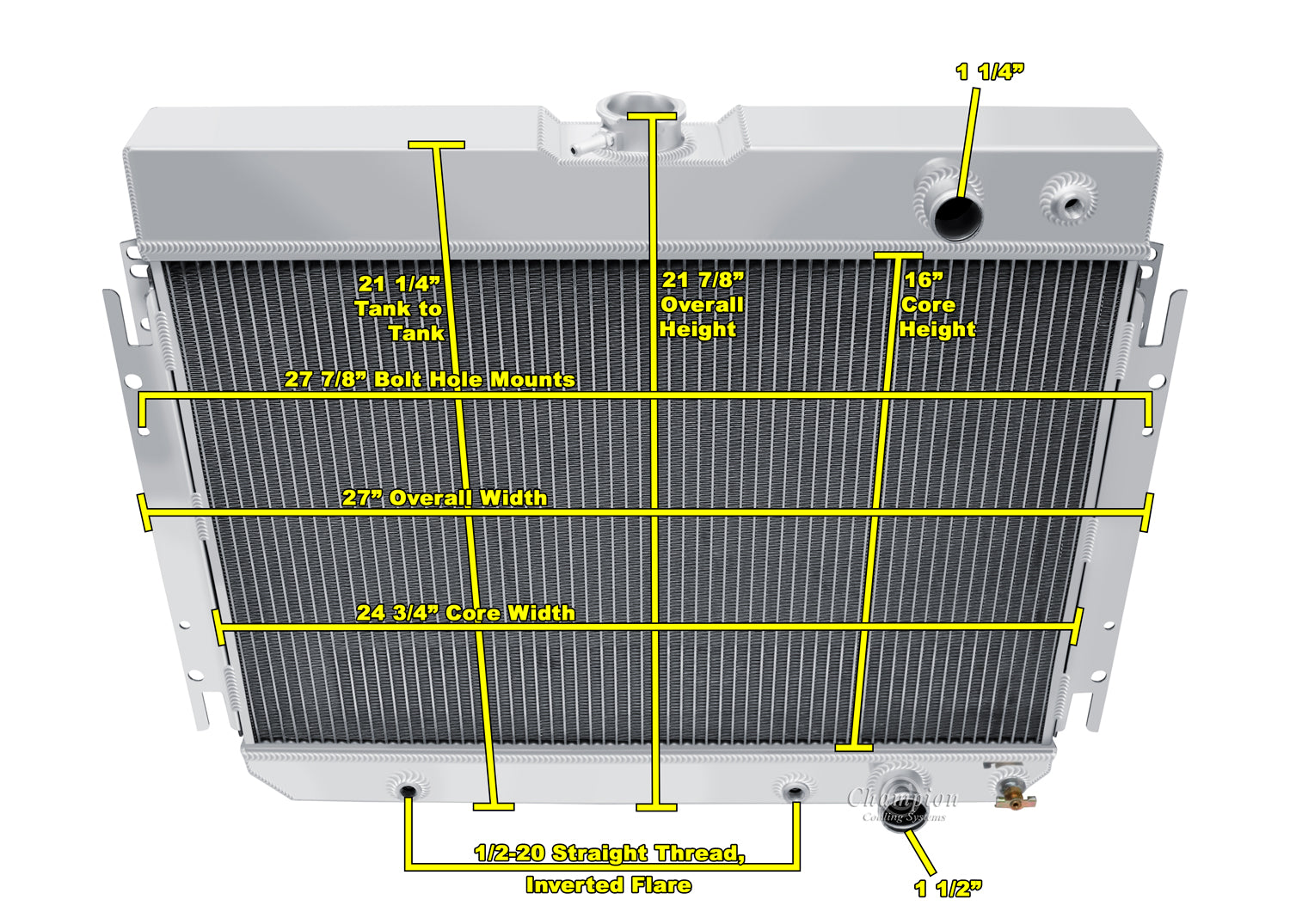

Dimensions

Total: 21.75" tall x 28" wide (including brackets)
Core: 16.13” tall x 25” wide x 2.5" thick
Inlet: 1.25” Passenger side
Outlet: 1.5” Passenger side
Tanks: 2.75” thick
Tubes: 0.75" thick

Total Thickness: 6.87", Thinner fans available

Whats Included

12" Fans (850 cfm)
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud
* Steam Port Added for ls motors.

Add On Options

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

STAINLESS OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
