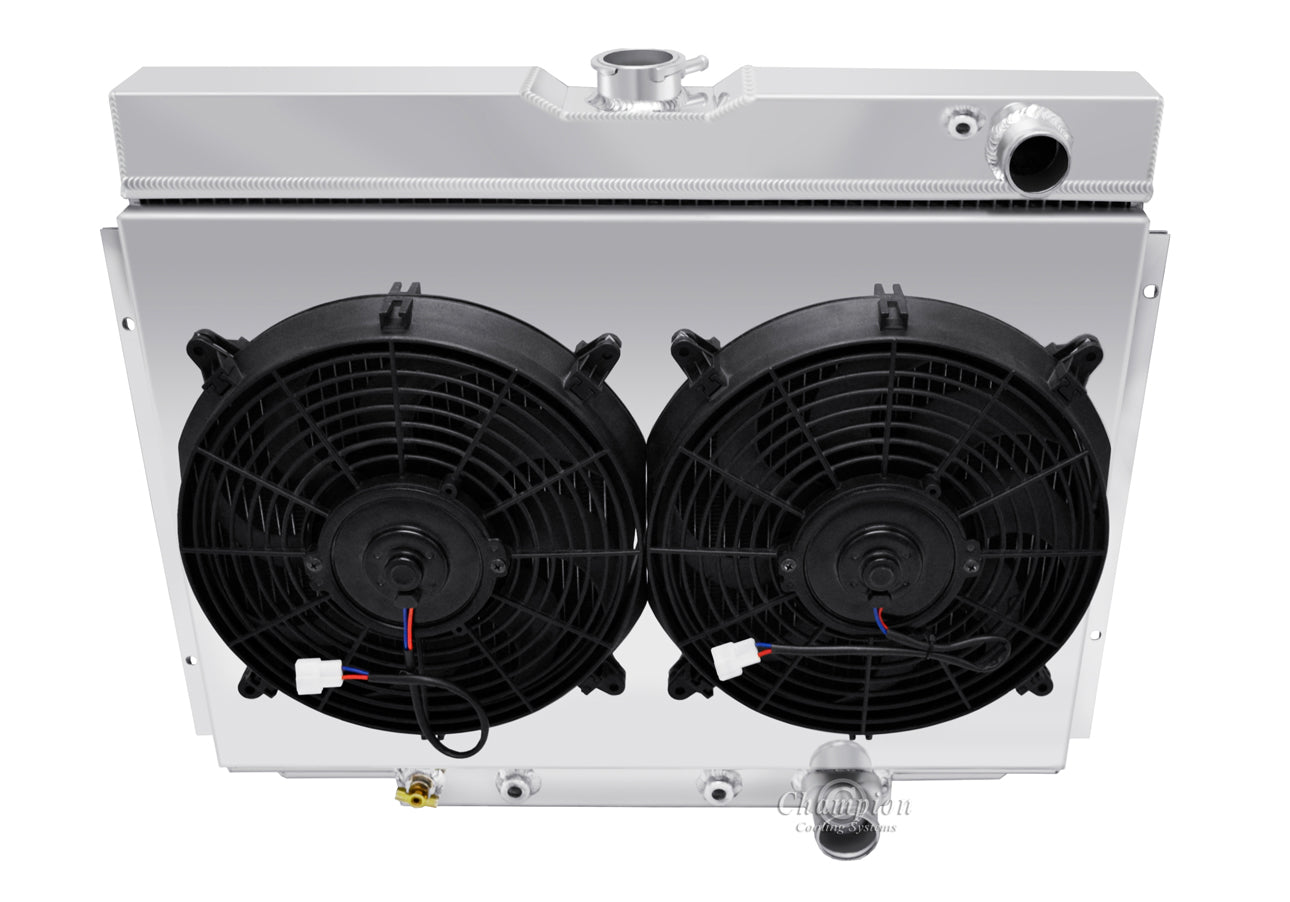

1967-1970 Mercury Cougar LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 21" (22" with cap) x 25.75" wide (with brackets)
Core: 16.5" tall x 24.25" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05

Whats Included

- 11" Fans
- Saddle or Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/8-27NPT)
- Aluminum shroud
- Steam port added for LS Motors

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
