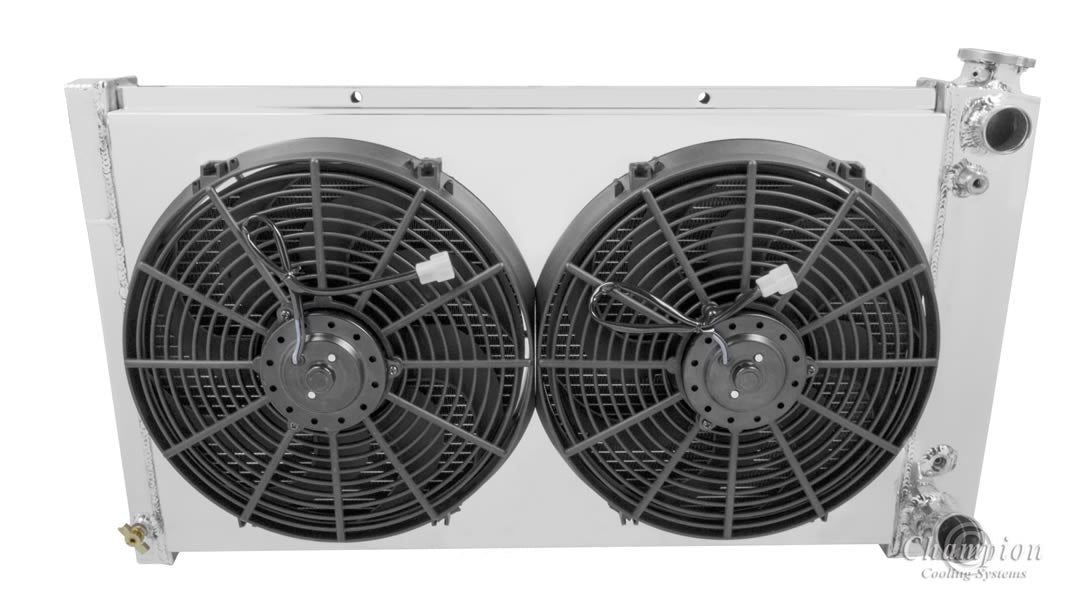

1967-1972 Chevy C10 Truck LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 18.25" tall (19" incl cap) x 33" wide
Core: 16." tall x 28.25" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Verify clearance for electric fan
Total thickness: 6" to fan motor

Whats Included

- 14" Fans
- Saddle Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
- Aluminum shroud
- *Added Steam port for LS Motors

SPAL High Performance Series -2044
13" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 14.17"
B: Depth 3.45"
C: Width 13.62"

CFM: 1777
AMP Draw: 19.5 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
