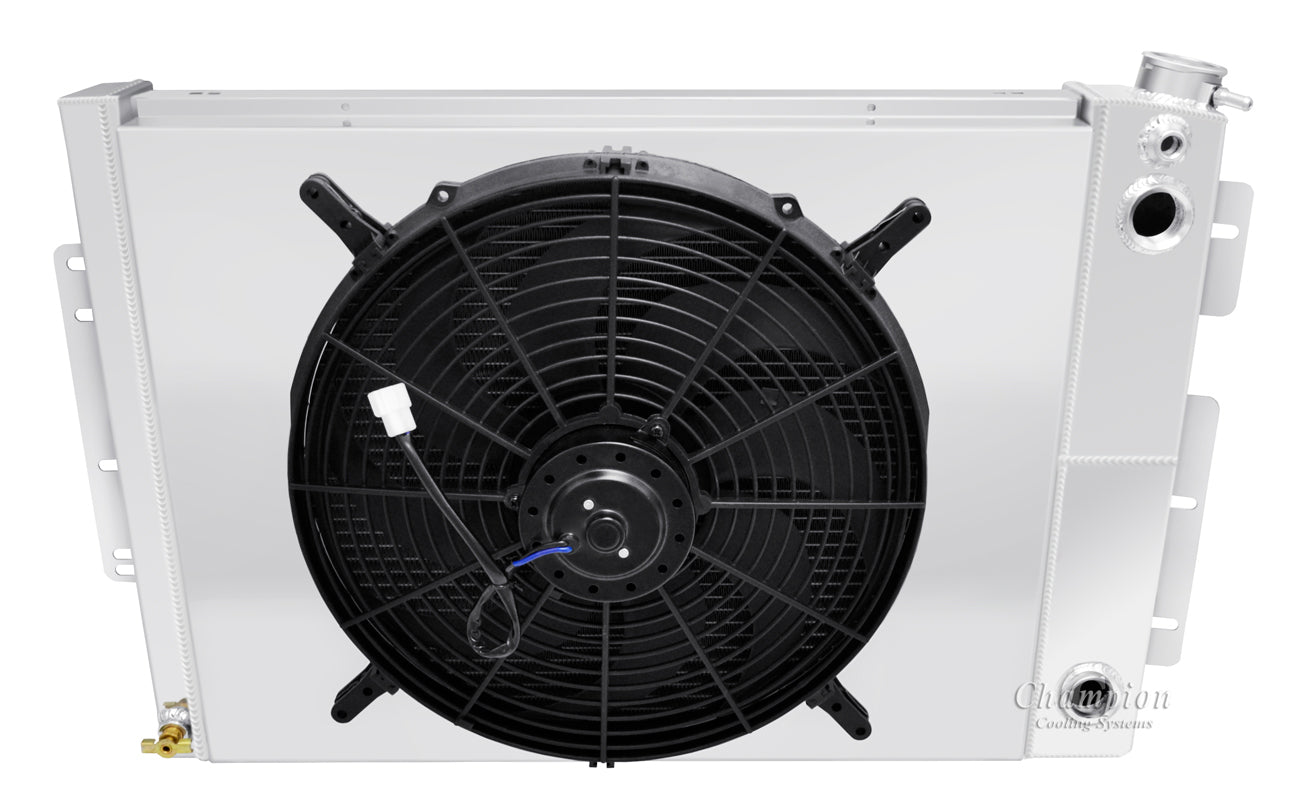

1967-1969 Pontiac Firebird LS Swap 3-Row Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 18.63" tall (19.25" with cap) x 30.25" wide
Core: 17" tall x 23" wide x 2.5" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Whats Included

16" Fan
Saddle Mounted
16lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
Aluminum shroud

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)

16AN Hose Kit

Complete your install with a clean look braided an hose line and swivel ends.
