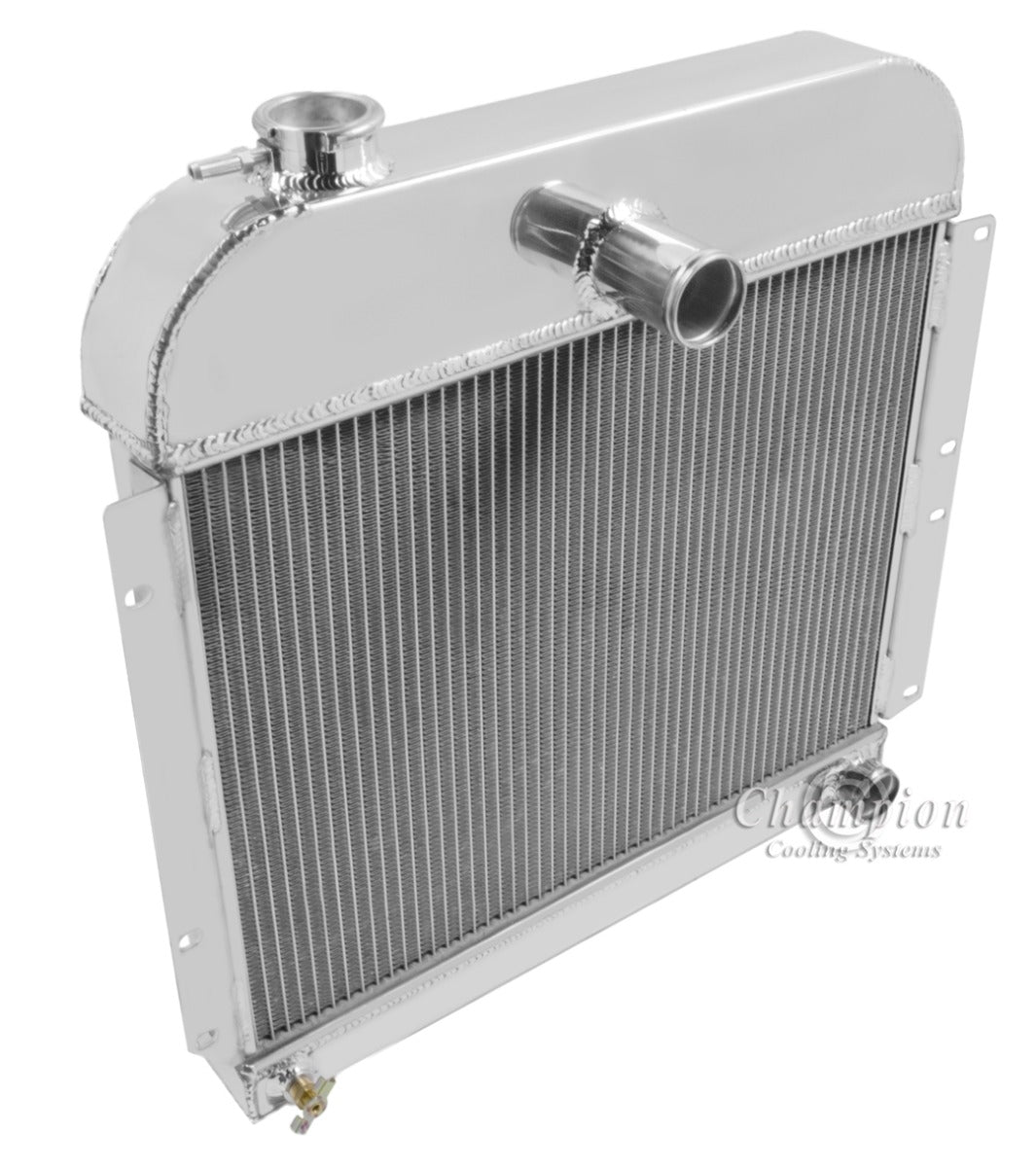

1941-1952 Plymouth Cars 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 21.63" tall (including cap) x 22.1" wide (including brackets) x 2.5" thick
Core: 14.63" tall x 19.38" wide x 2" thick
Inlet: 1.75" center of top tank
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler NOT included

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
