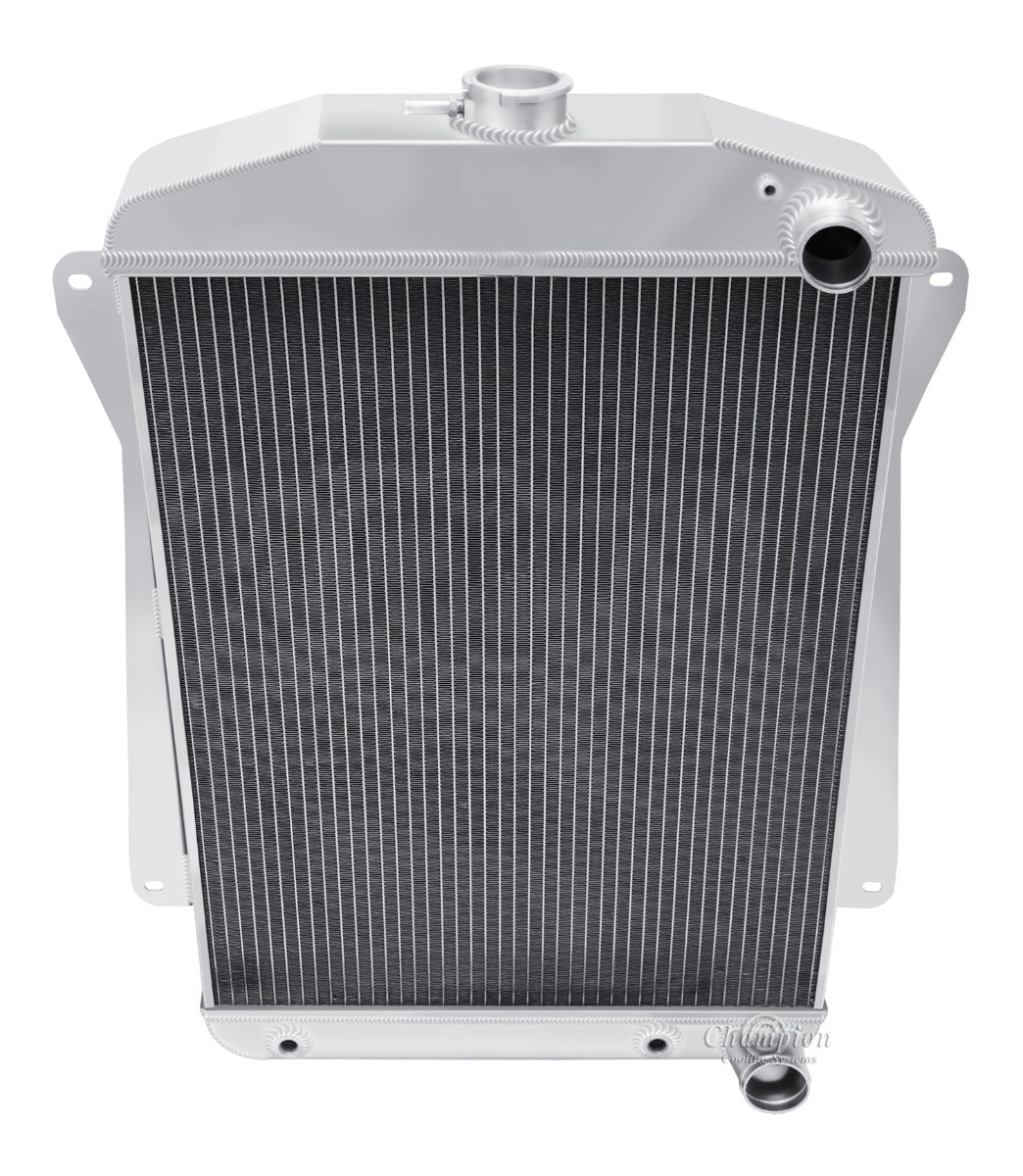

1940-1941 Ford Truck LS Swap 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 29.5" tall x 25.38" wide (lower bracket)
Core: 21" tall x 20.5" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Some of the 1940 Trucks use a shorter radiator. Please check your height.
Use the 1939-1941 Ford Car Radiators if you need one 2" shorter.

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included ( 1/2-20 Straight Thread, Inverted Flare)
- *Steam Port added for LS Motors

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
