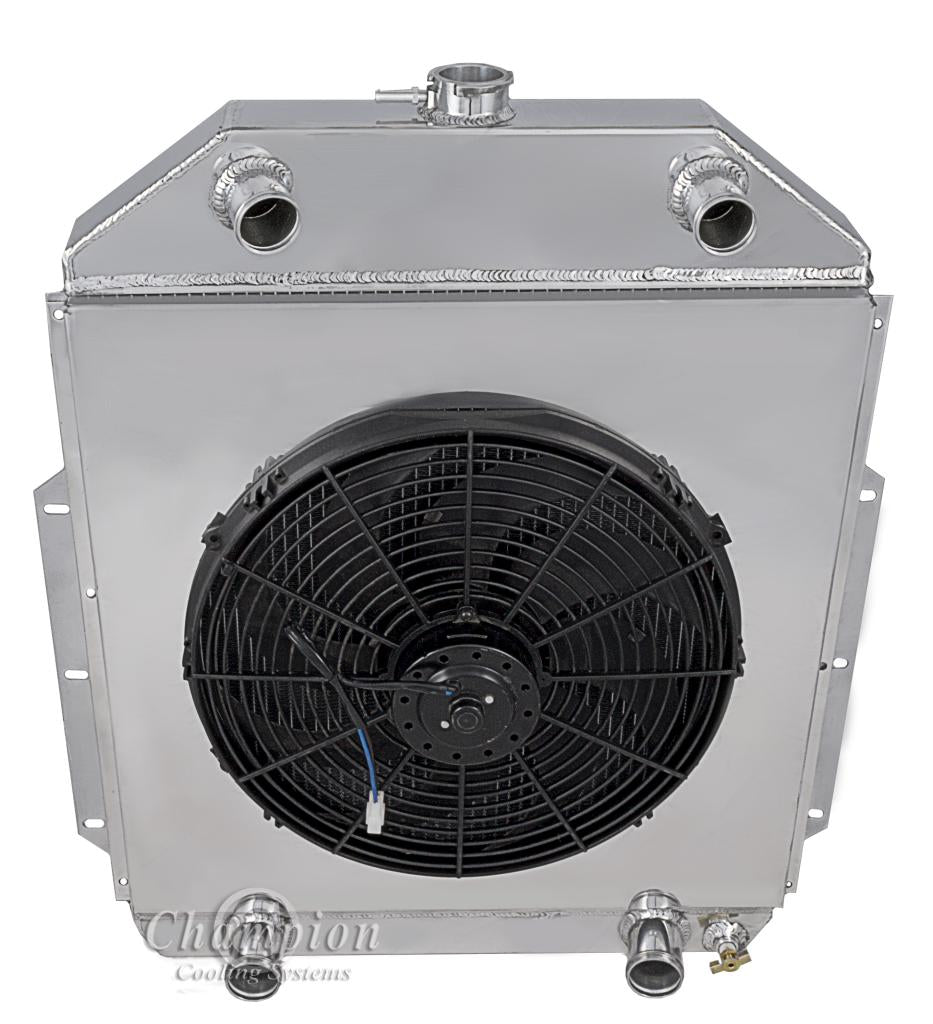

1942-1952 Ford Truck 3-Row Radiator, Shroud, Fan Combo - Flathead Engine - Champion Radiator

Radiator Dimensions:

Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2" thick
Inlets: (2) 1.25" Both sides
Outlets: (2) 1.75" Both sides
Tanks: 2.5" thick
Tubes: 0.58" thick

Verify clearance for electric fan
Total thickness: 7.25" to fan motor

Whats Included

16" Fan
Bracket Mounted - E-Bracket Mounted From mounting bracket to engine face of core is 1.38" thick
13lb. Radiator Cap included
Transmission Cooler Included (1/8" -27 NPT)
Aluminum shroud

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
