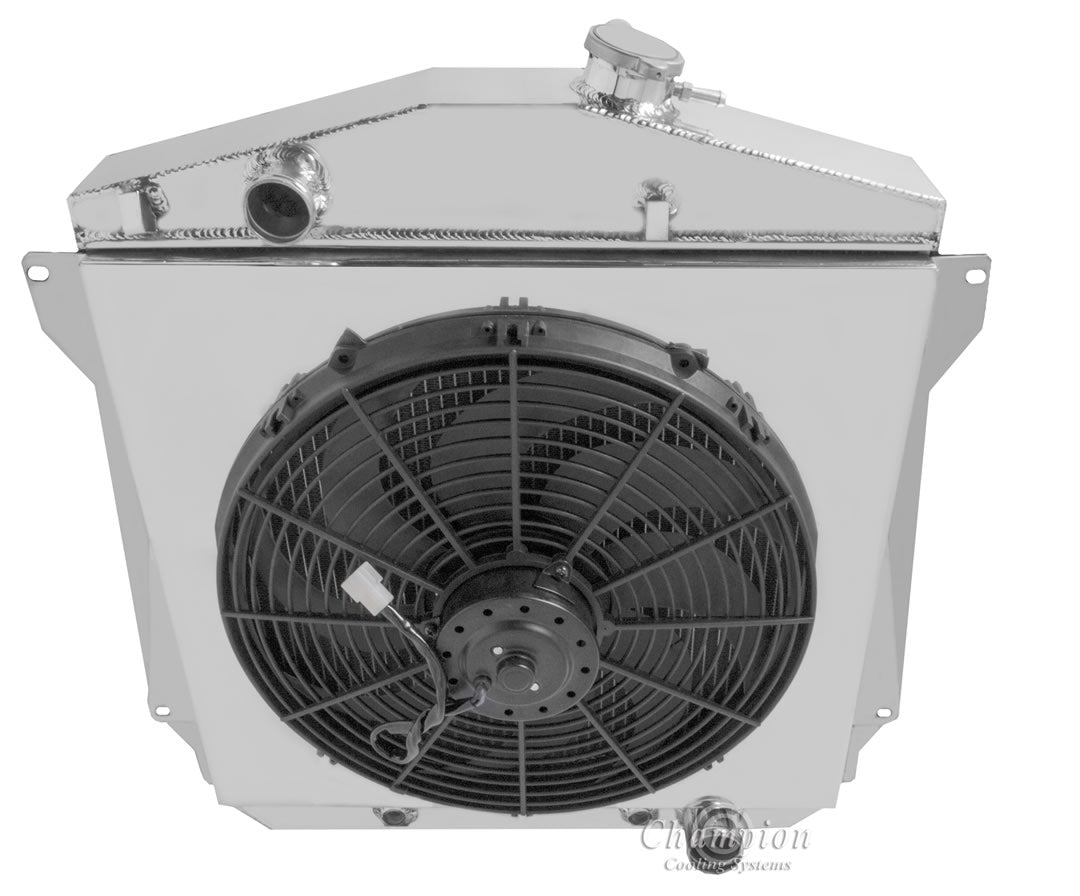

1943-1948 Chevy Car 3-Row Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 25" tall x 23" wide
Core: 18.63" tall x 19.75" wide x 2" thick
Inlet: 1.5" Driver side
Outlet: 1.75" Passenger side
Tanks: 2.88" thick
Tubes: 0.63"

Total thickness: 6" to fan motor
*Verify clearance for electric fan

This is the V8 conversion radiator
*Note: Petcock on grill side

Whats Included

16" Fan
Brackets on engine face of radiator
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
