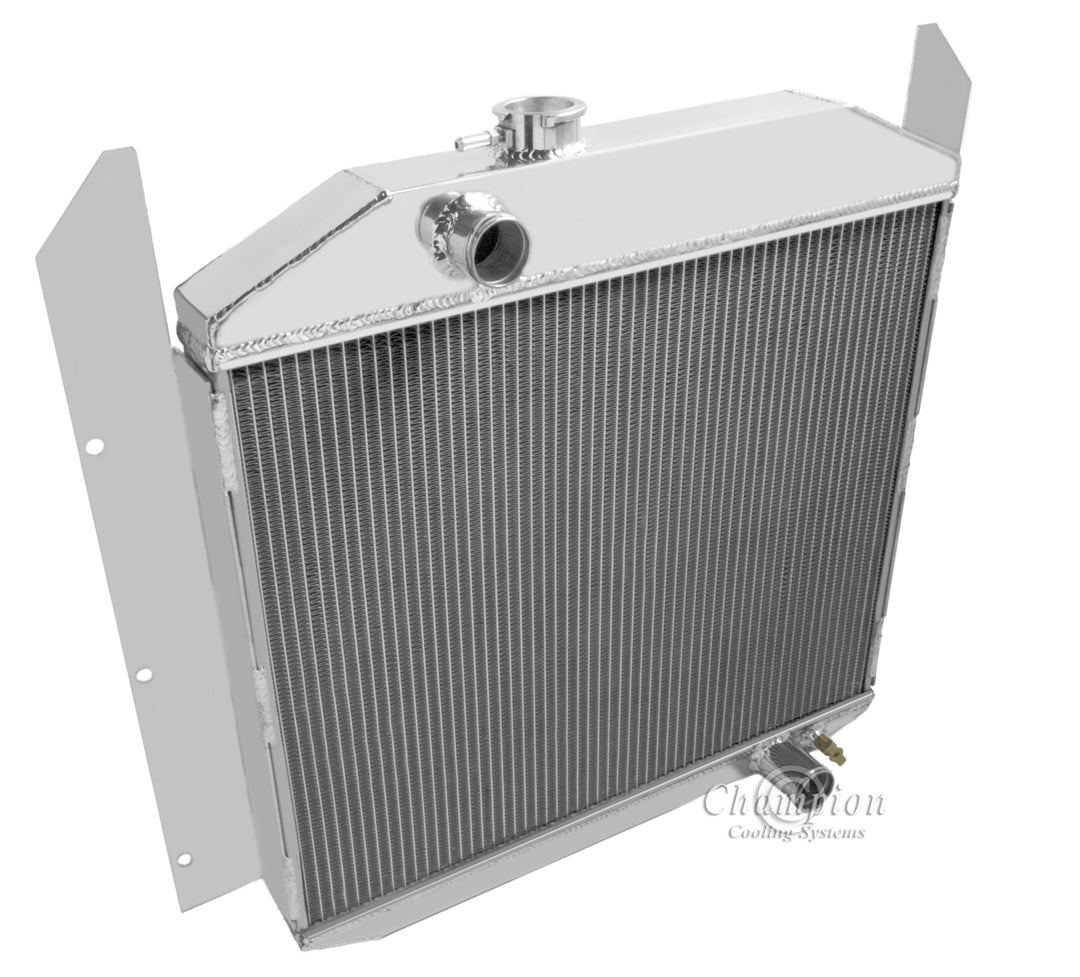

1949-1952 Studebaker Truck 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 23.5" tall (Incl Cap) x 27 1/8" wide (Including Brackets)
Core: 17.75" tall x 21.63" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

Whats Included

- Bracket Mounted (Note: The brackets on this radiator are on the grill side of the radiator. We can move the brackets to the engine side at an additional charge if needed)
- 13lb. Radiator Cap included
- Transmission Cooler NOT Included

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
