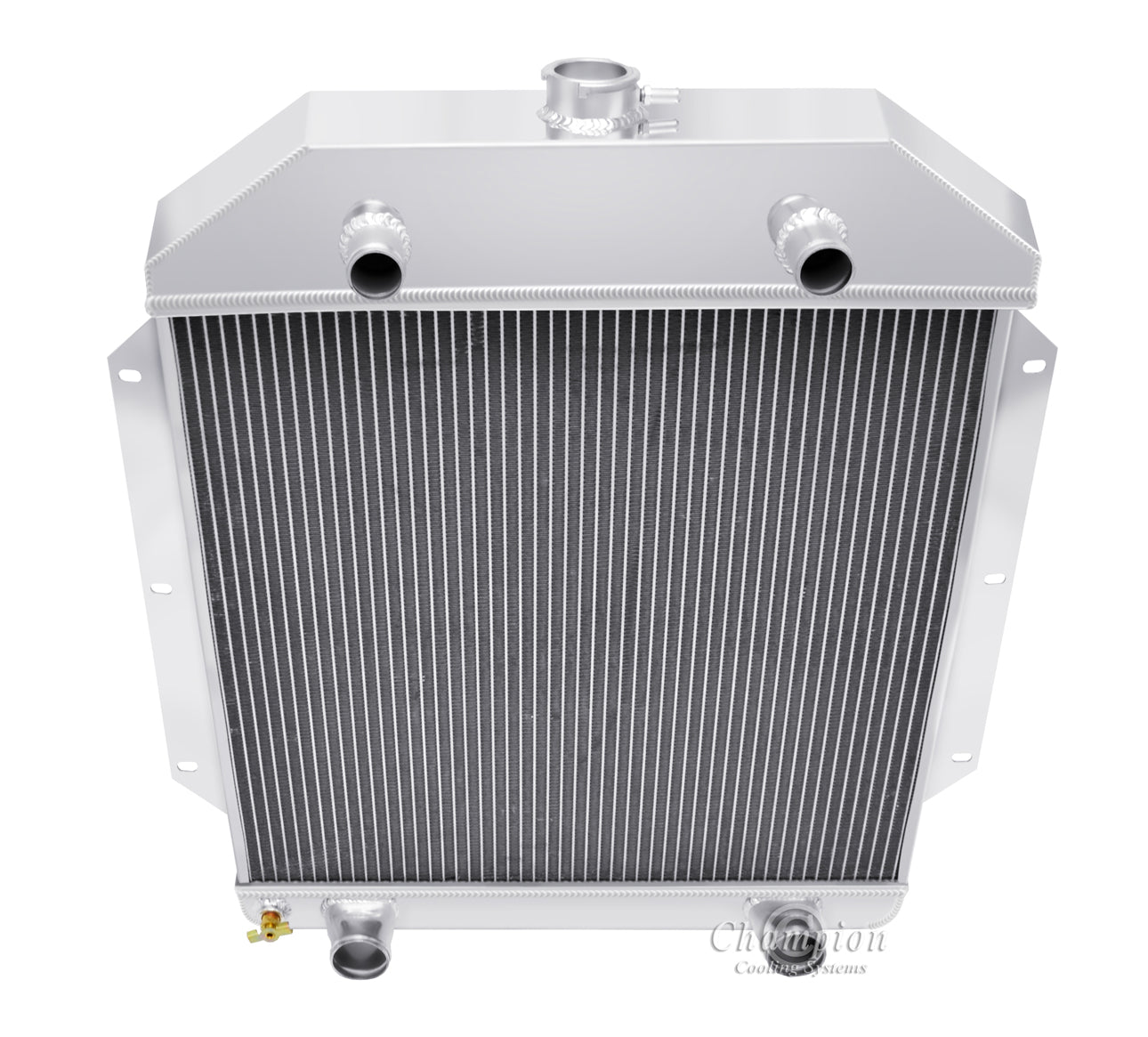

1949-1953 Ford 3-Row Radiator - Flathead Motor - Champion Radiator

Radiator Dimensions:

Total: 26.75" tall (with cap) x 24.75" wide (including brackets)
Core: 20.5" wide x 19.38" tall x 2.25" thick
Inlets: 1.25" passenger and driver side
Outlets: 1.75" passenger and driver side
Tanks: 3.88" thick (top); 3.88" thick (bottom)
Tubes: 0.63" thick

Whats Included

Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler not Included

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
