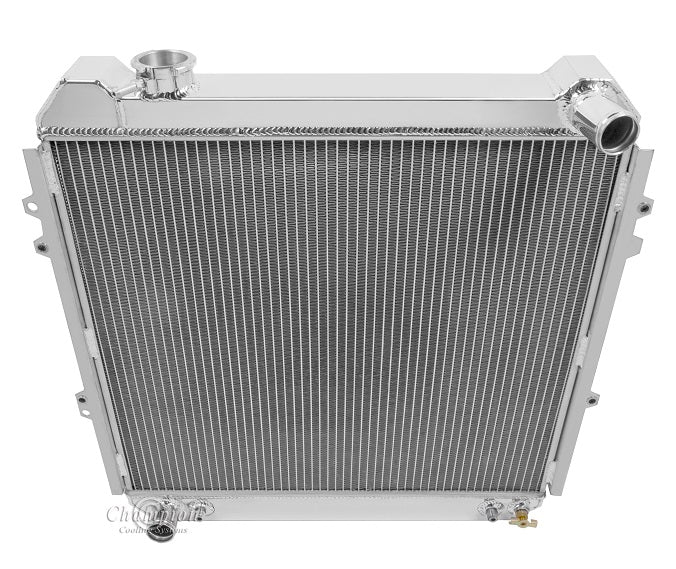

1988-1995 Toyota Truck 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 23.5" tall x 23.5" wide (including brackets)
Core: 18.75" tall x 20.75" wide x 2" thick
Inlet: 1.38" passenger
Outlet: 1.38” driver
Tanks: 2.38" thick
Tubes: 0.68" thick

Bracket Mounted

*May only fit 4WD Please confirm fill neck position and overall width with brackets

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (M14-1.5)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
