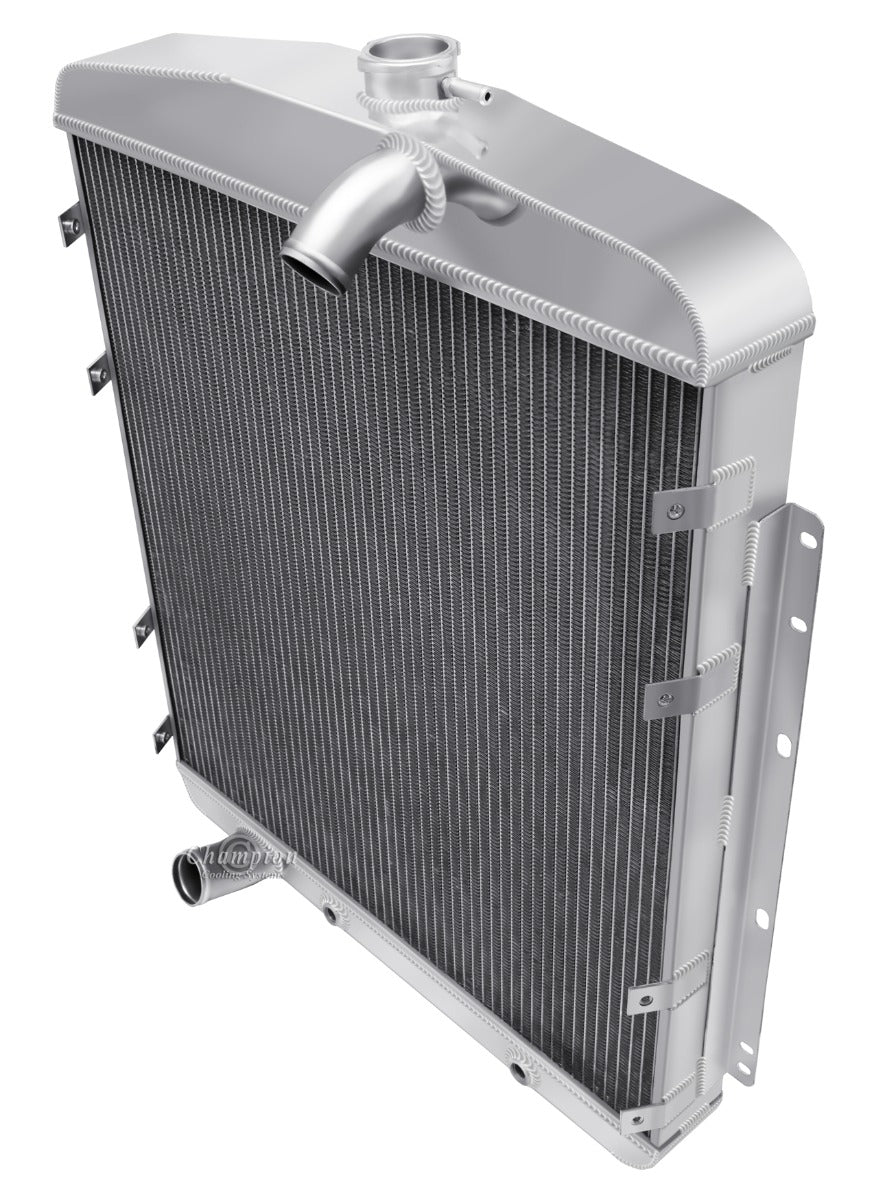

1949-1950 Oldsmobile 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 27.83" tall x 24" (including brackets)
Core: 22" tall x 22" wide x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/2"- 20 straight thread, inverted flare)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
