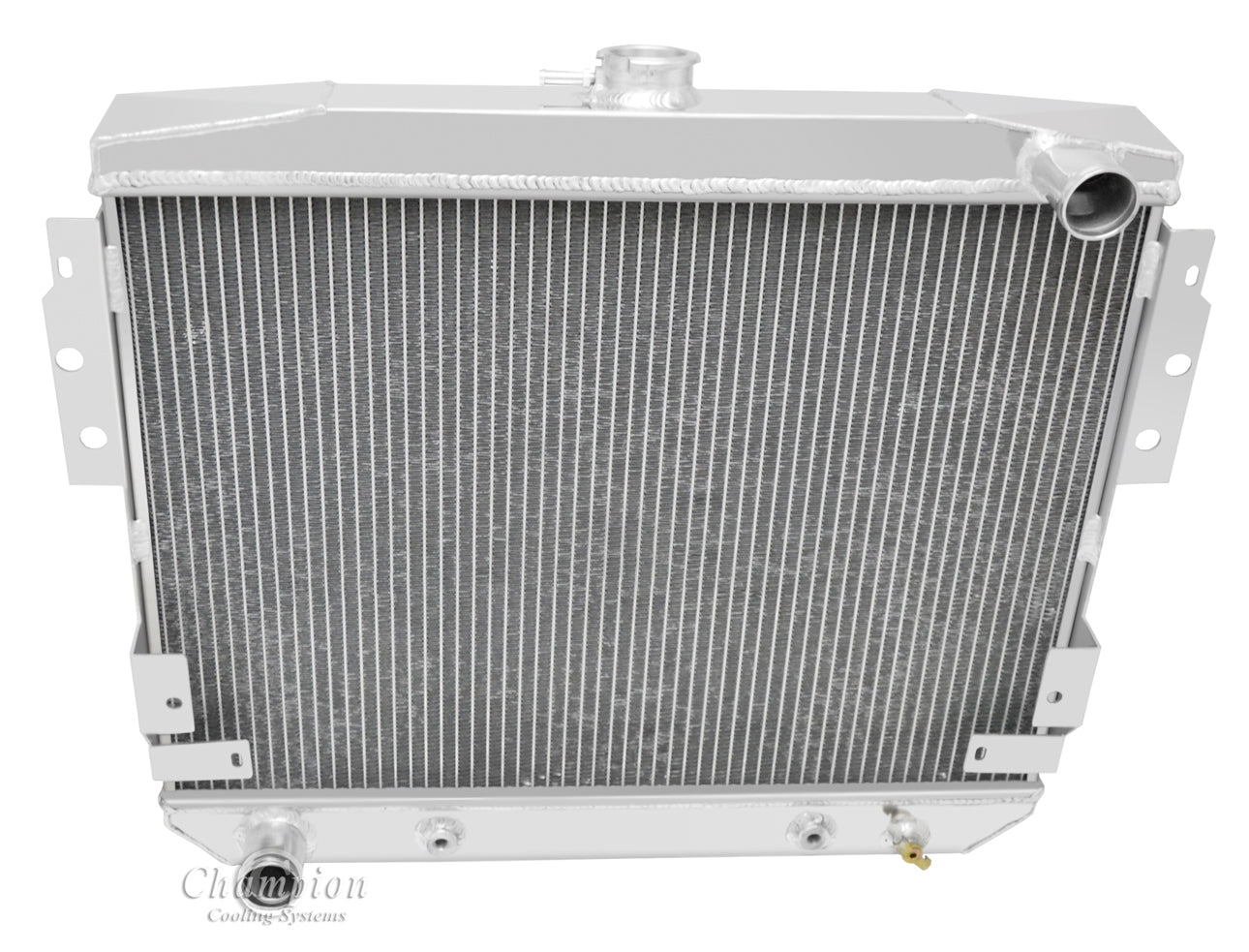

1977-1978 Mustang 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 22" tall (with cap)x 25.5" wide (including brackets)
Core: 16.5" tall x 23" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3"
Tubes: 0.63" thick

Bracket Mounted

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/8-27NPT)

Compatible With
Ford Mustang 1979-1993 (all engines)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
