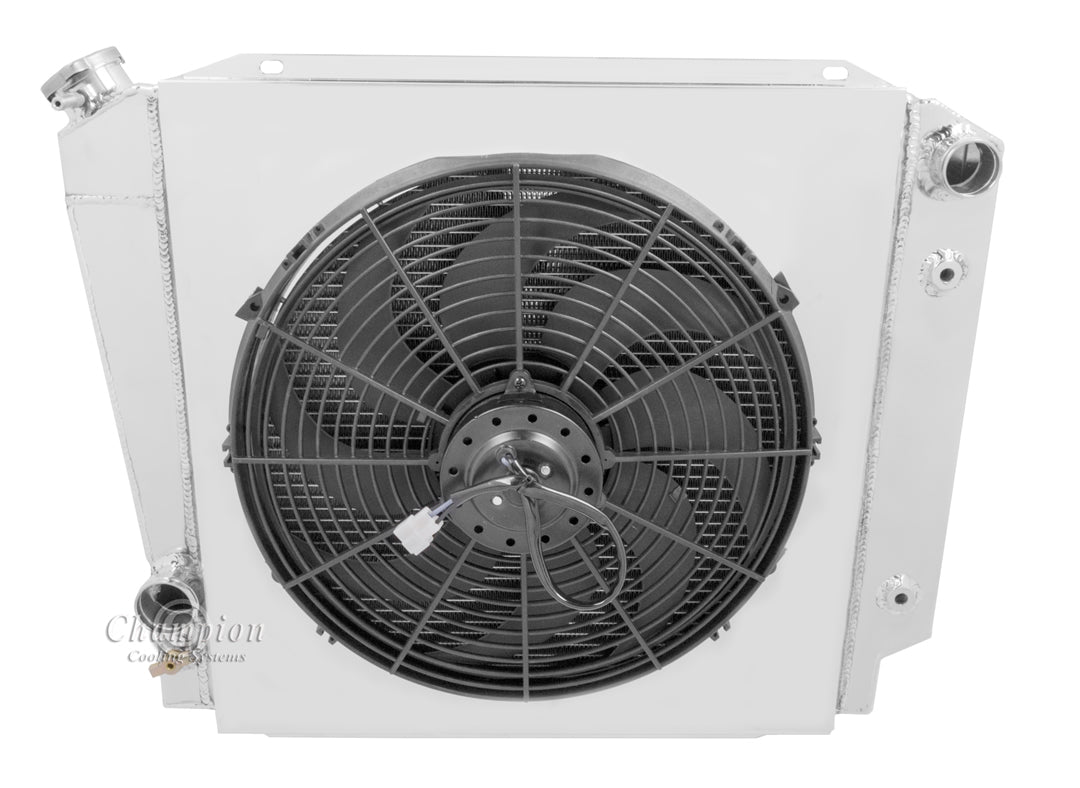

1966-1977 Ford Bronco 3-Row Radiator, Shroud, Fan Combo - 5.0 Swap - Champion Radiator

Radiator Dimensions:

Total: 21" tall x 26.38" wide
Core: 19.13" tall x 19" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 5.25"
Shroud Bracket Nut Inserts: 6MM-1

Verify clearance for electric fan
Total thickness: 5.25" to fan motor
5.0 Conversion style outlets
*Custom Radiator

Whats Included

16" Fan
Saddle Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum shroud
* 4-Row Mounts needed for this thicker Radiator

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
