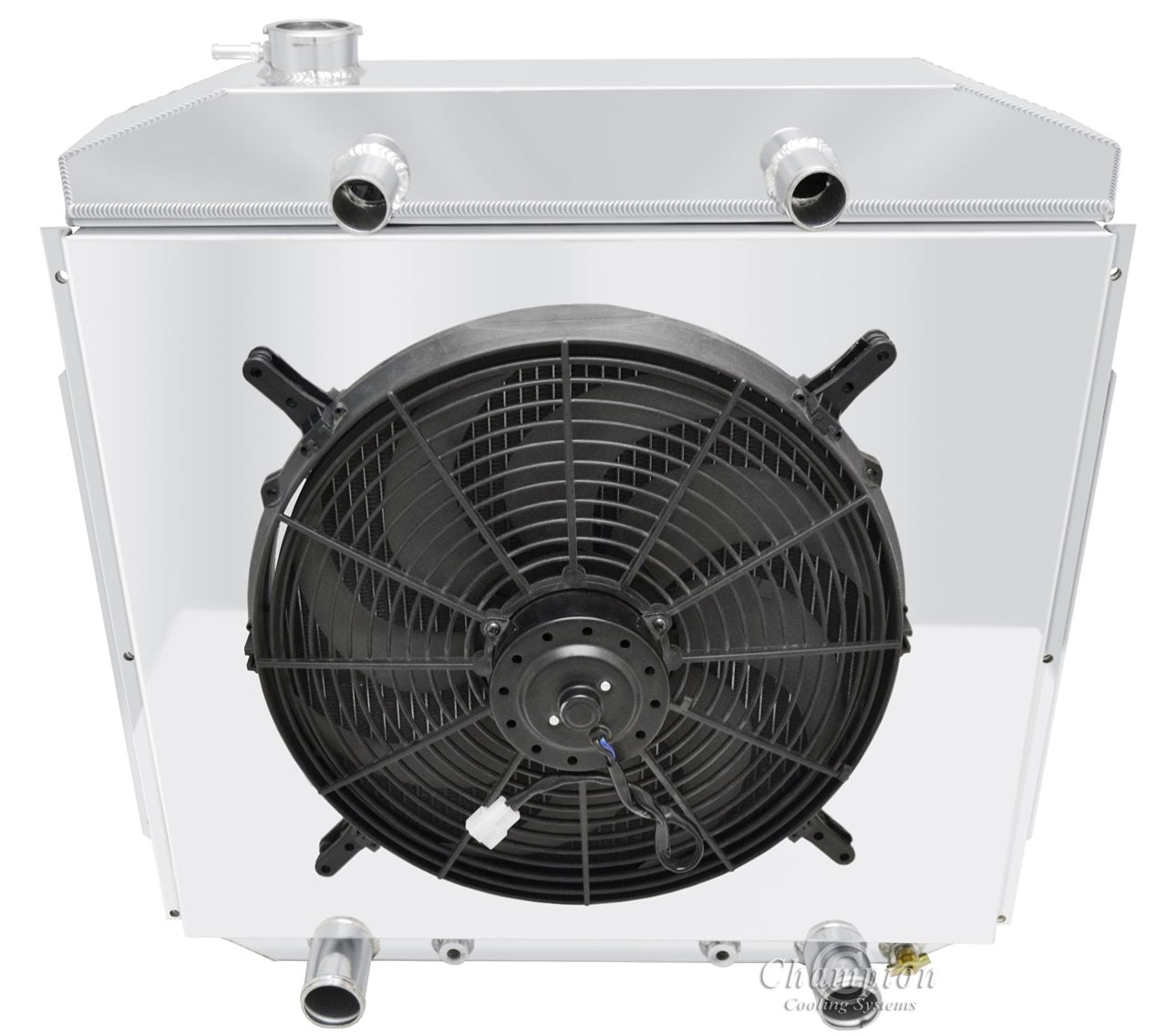

1953-1956 Ford Truck, F100 3-Row Radiator, Shroud, Fan Combo - Flathead Engine - Champion Radiator

Radiator Dimensions:

Total: 26.25" tall (with cap) x 26.75" wide
Core: 20" tall x 23" wide x 2" thick
Inlets: 1.25"
Outlets: 1.75"
Tanks: 2.75" thick
Bracket Specs: Vert - 18 1/2" Hor - 24 7/8"
Tubes: 0.63" thick

Verify clearance for electric fan
Total thickness: 6" to fan motor

Whats Included

16" Fan - 1600cfm
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8" -27 NPT)
Aluminum shroud

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
