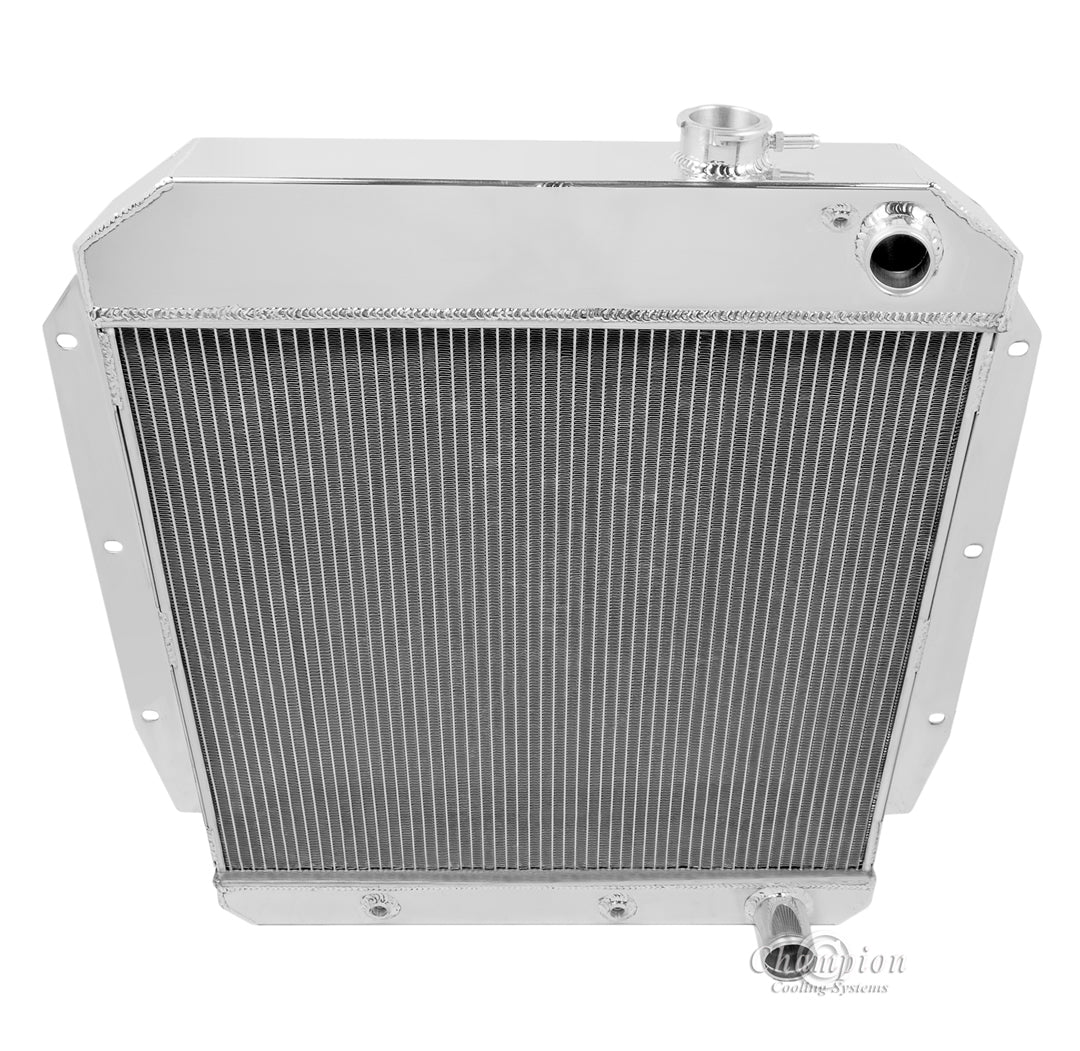

1955-1959 GMC Truck LS Swap 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 26.75" tall (with cap) x 26.5" wide (including brackets)
Core: 19.38" tall x 21.75" wide x 2" thick
Inlet: 1.25" Passenger side
Outlet: 1.5" Passenger side
Tanks 2.5" thick
Tubes: 0.63" thick

Whats Included

Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Steam port added for ls motors

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
