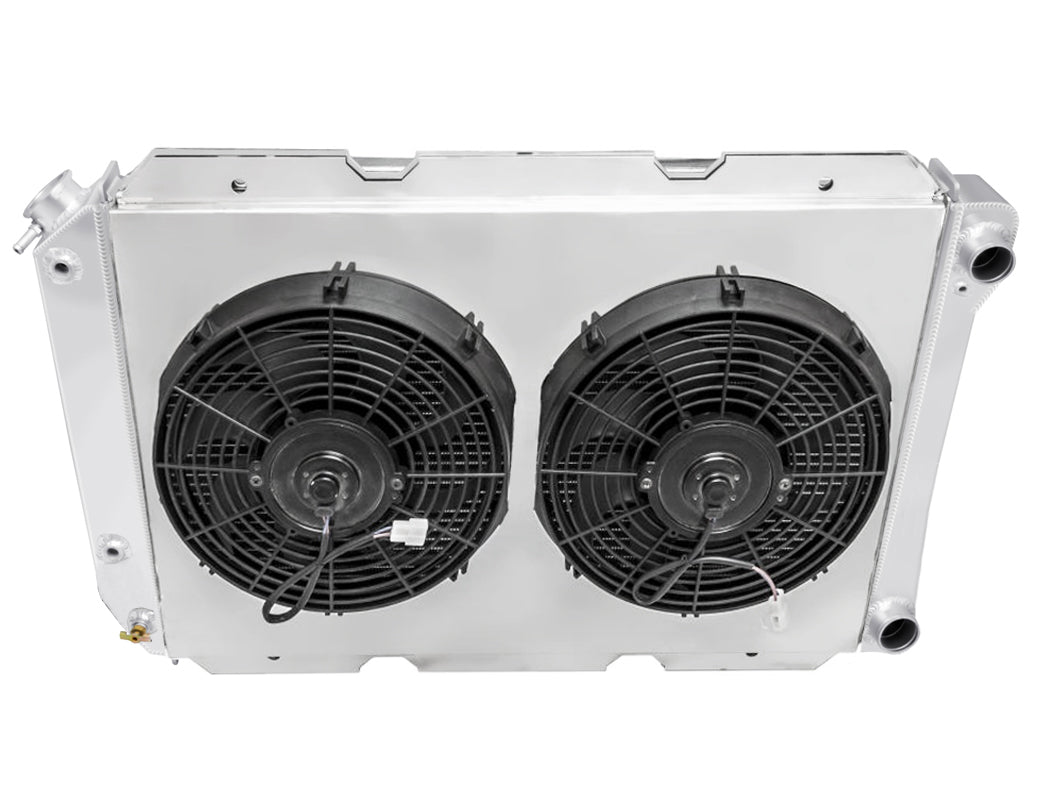

1981- 1984 Ford F150 Truck 3-Row LS Swap Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 21.13" tall x 32.83" wide (with brackets) Core: 19.63" tall x 27.5" wide x 2.5" thick Inlet: 1.5" passenger side Outlet: 1.5" passenger side Tanks: 2.75" thick Tubes: 0.75" thick

Whats Included

- 14" Fans
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/4-18NPT)
- Aluminum shroud
- Steam Port For LS motors

SPAL High Performance Series -2044
13" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 14.17"
B: Depth 3.45"
C: Width 13.62"

CFM: 1777
AMP Draw: 19.5 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
