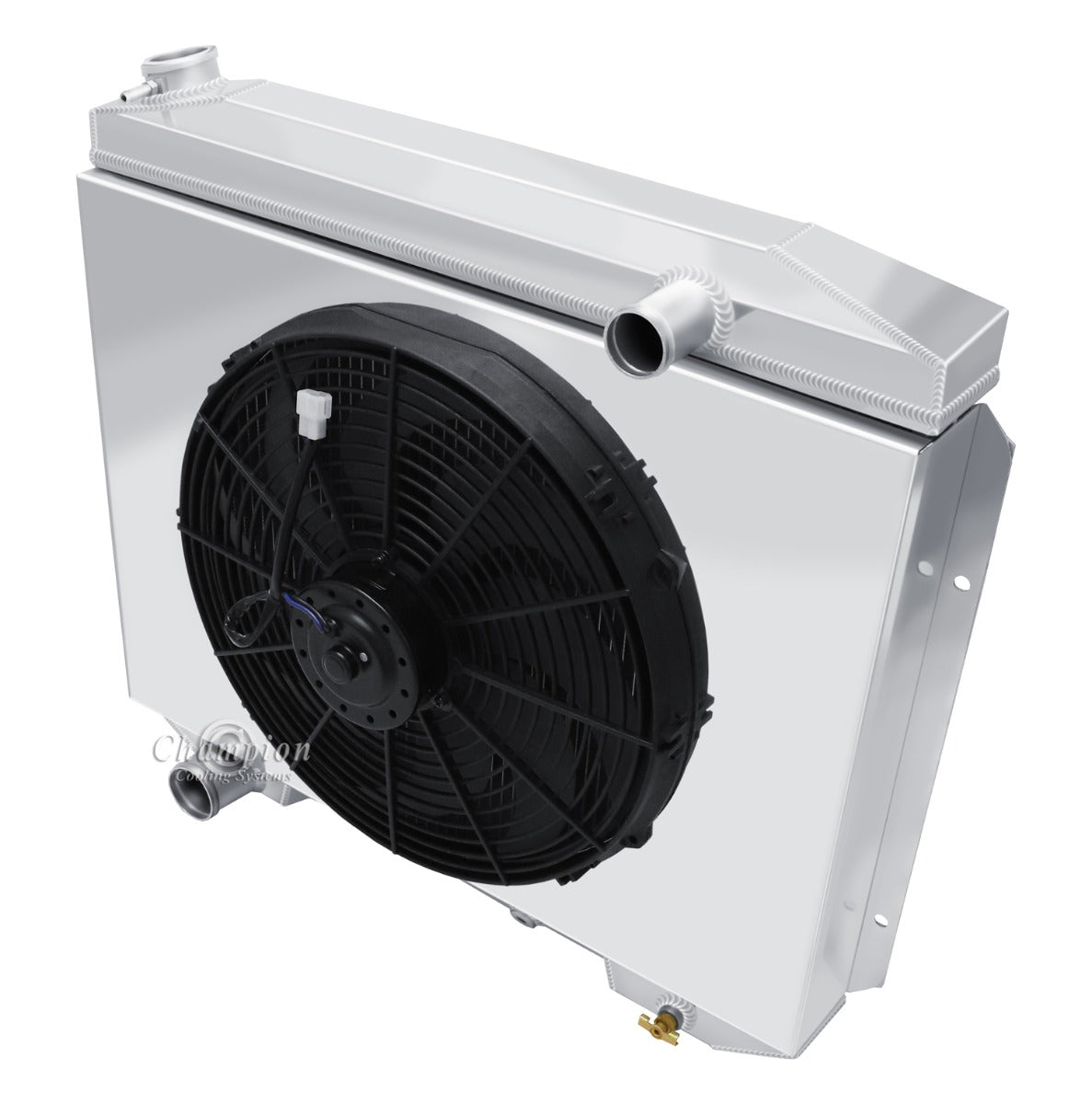

1957 -1959 Ford Skyliner 3-Row Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 20.83" tall x 26.5" wide (with brackets)
Core: 16" tall x 23.13" wide x 2" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver
Tanks: Upper tank 3.5" thick
Lower tank 2.38" thick
Tubes: 0.63" thick

Whats Included

16" Fan
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler (1/8-27 NPT)
Aluminum shroud

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
