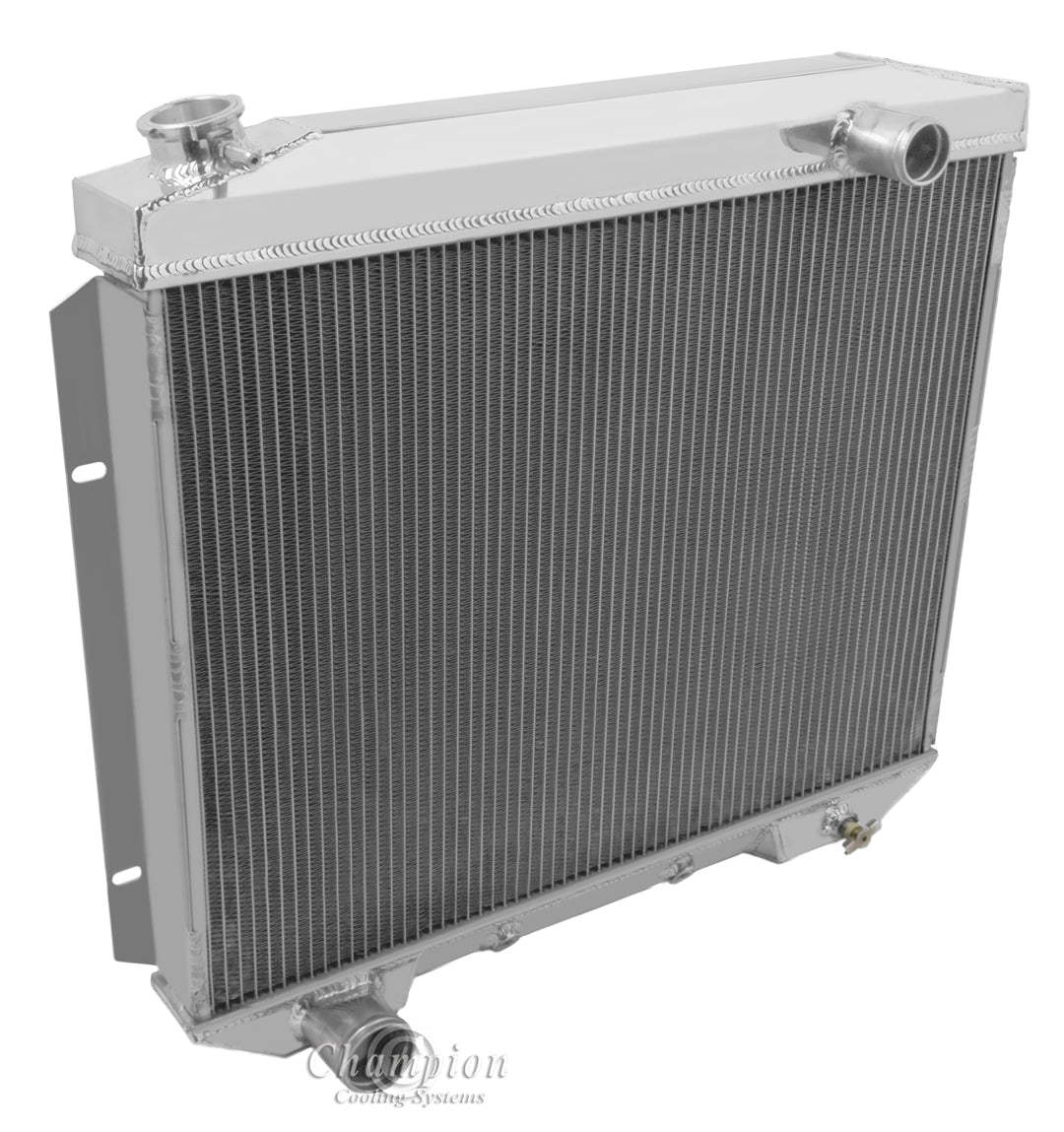

1957-1959 Mercury Monterey 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 22.25" tall (23.375" with cap) x 26.375" wide (with brackets)
Core: 18" tall x 24.25" wide x 2" thick
Inlet: 1.5" passenger
Outlet: 2" driver
Tanks: 3.25" top tank, 2.38" lower tank
Tubes: 0.63" thick

Bracket Mounted

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/8-27 NPT)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
