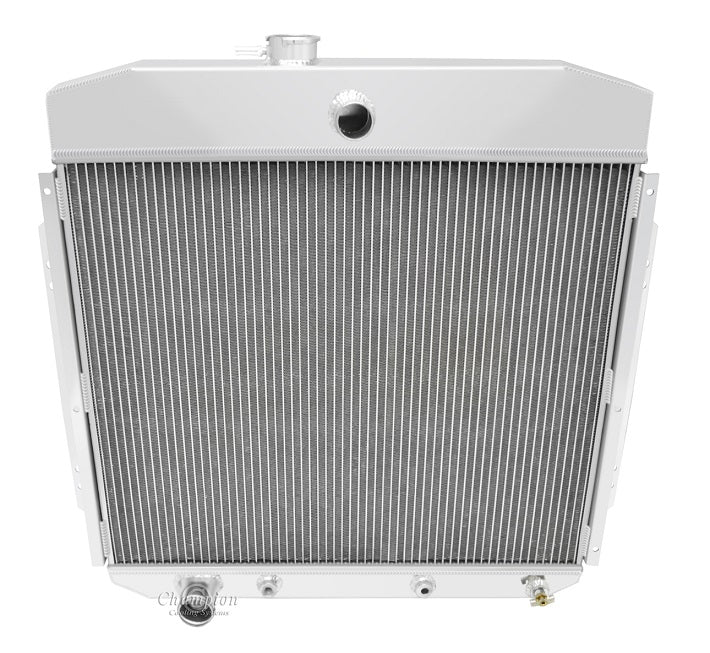

1957-1960 Ford Truck, F100 4-Row Radiator - Fits Chevy V8's / Ford 6 cyl - Champion Radiator

Radiator Dimensions:

Total: 26.25" tall (with cap) x 27.50" wide
Core: 20" tall x 23" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Bracket Specs: Vert - 18 1/2" Hor - 24 7/8"
Tubes: 0.63" thick

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/4-18NPT)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
