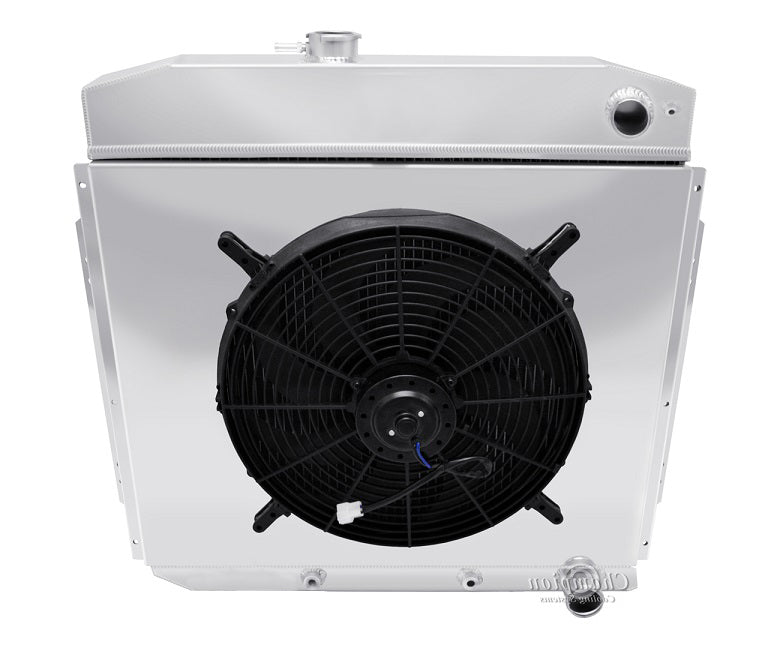

1957-1960 Ford Truck, F100 3-Row LS Swap Radiator, Shroud, Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 26.25" tall (with cap) x 27.5" wide (including brackets)
Core: 20" tall x 23" wide x 2" thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.75" thick
Tubes: 0.63" thick
Total thickness: 6" to fan motor

Whats Included

16" Fan - 1600cfm
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27 NPT)
Aluminum shroud
Steam Port added for LS Motors

SPAL High Performance Series -2049
16" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 16.30"
B: Depth 3.47"
C: Width 15.75"

CFM: 2024
AMP Draw: 19 Amp

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
