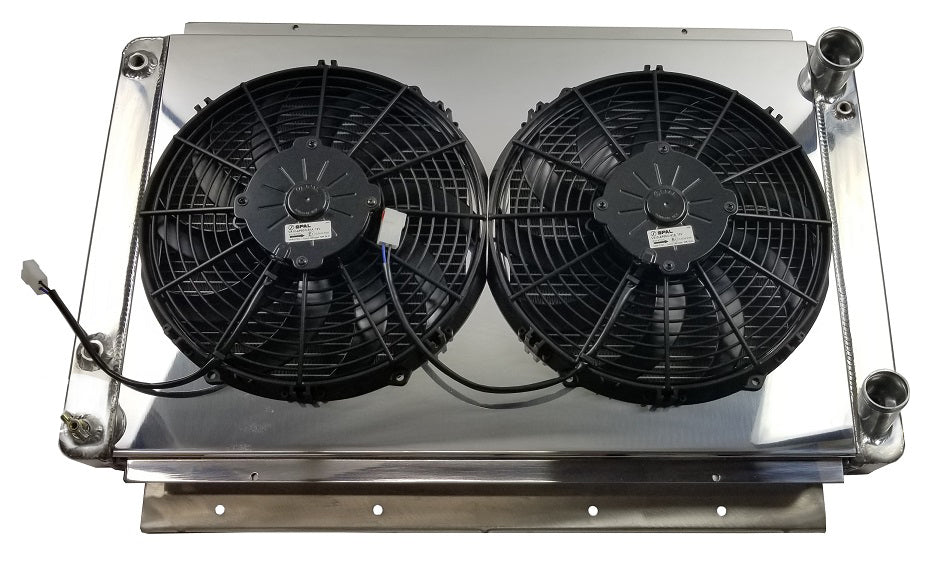

1961-1965 Lincoln Continental LS Swap 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 20.13" tall (with cap) x 30.13" wide
Core: 17.25" tall x 25.75” wide x 2.25" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Total thickness with Radiator, Shroud, and Fans : 7.50" thick

Whats Included

- 13" Fans - 1100 CFM Each
- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/4-18NPT)
- Aluminum shroud
- Steam port added for LS Motors

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
