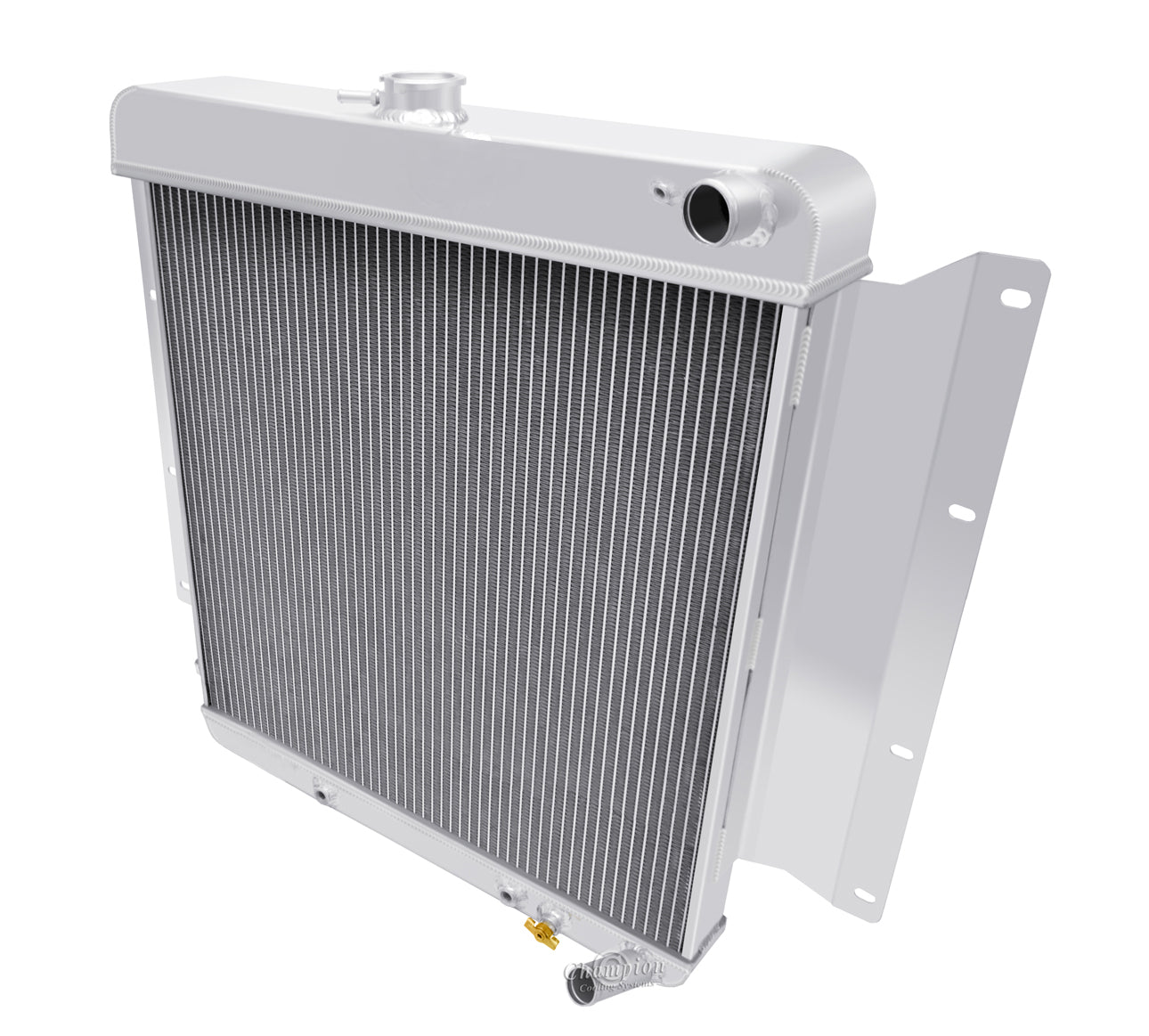

1961-1969 Dodge D100 Truck LS Swap 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 25.875" tall (26.38" with cap) x 29.875" wide (with brackets)
Core: 20.375" tall x 21.13" wide x 2.5" thick
Inlet: 1.25" Passenger
Outlet: 1.50" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

Whats Included

- Bracket Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/8-27NPT)

- Steam port added for LS Motors

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
