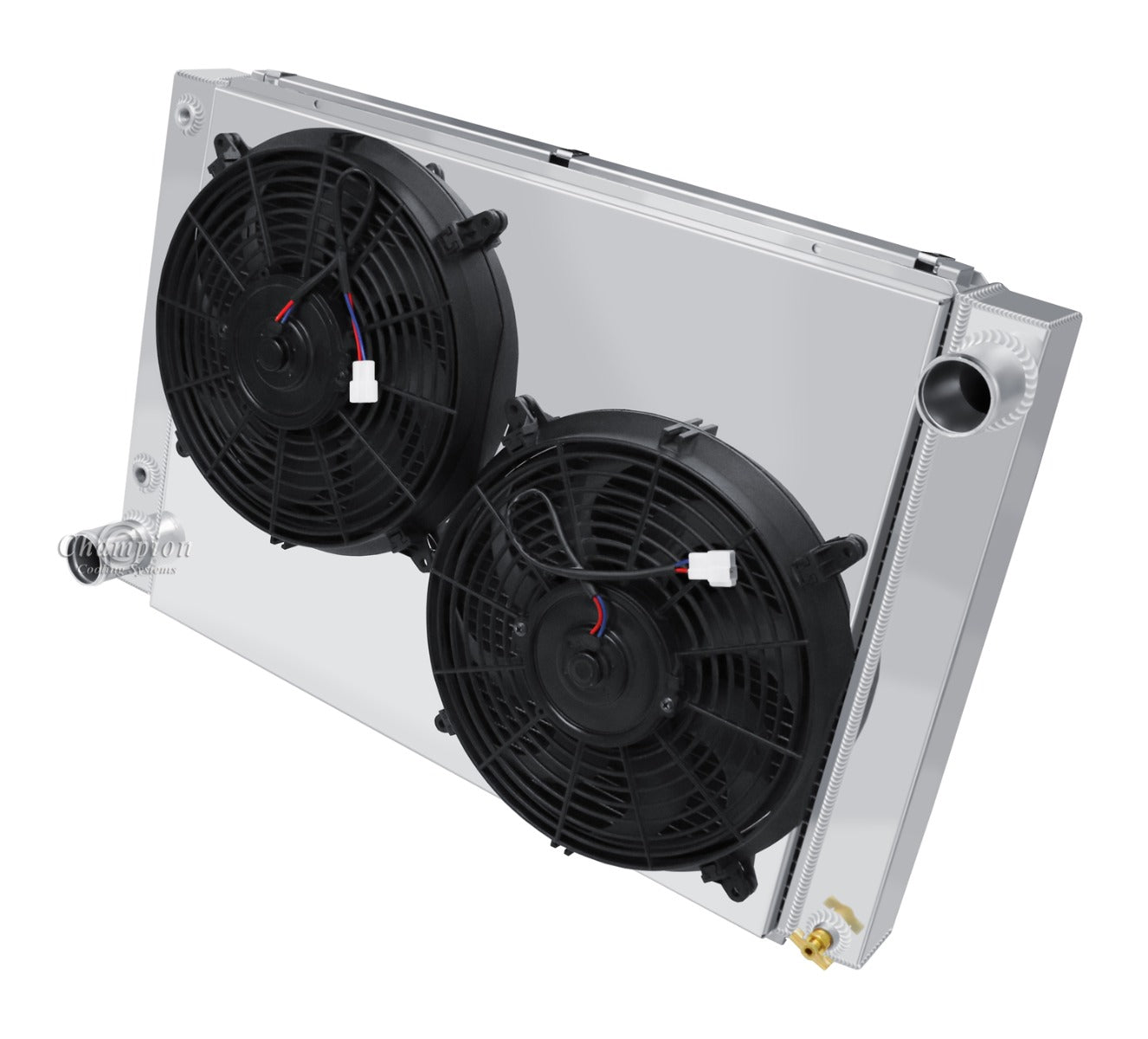

1961-1963 Ford Thunderbird 3-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 19.38" x 28" wide
Core: 17.25" tall x 23.25" wide x 2.25" thick
Inlet: 1.75" passenger
Outlet: 1.75" driver
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

Whats Included

- 12" Fans (850 cfm each)
- Saddle Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/4" npt)

- Aluminum shroud

SPAL High Performance Series -2029
12" Cooling Fan
Curved Blade - Pull

Specifications:
A: Length 13.03"
B: Depth 3.45"
C: Width 12.64"

CFM: 1451
AMP Draw: 14.5 Amps

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
