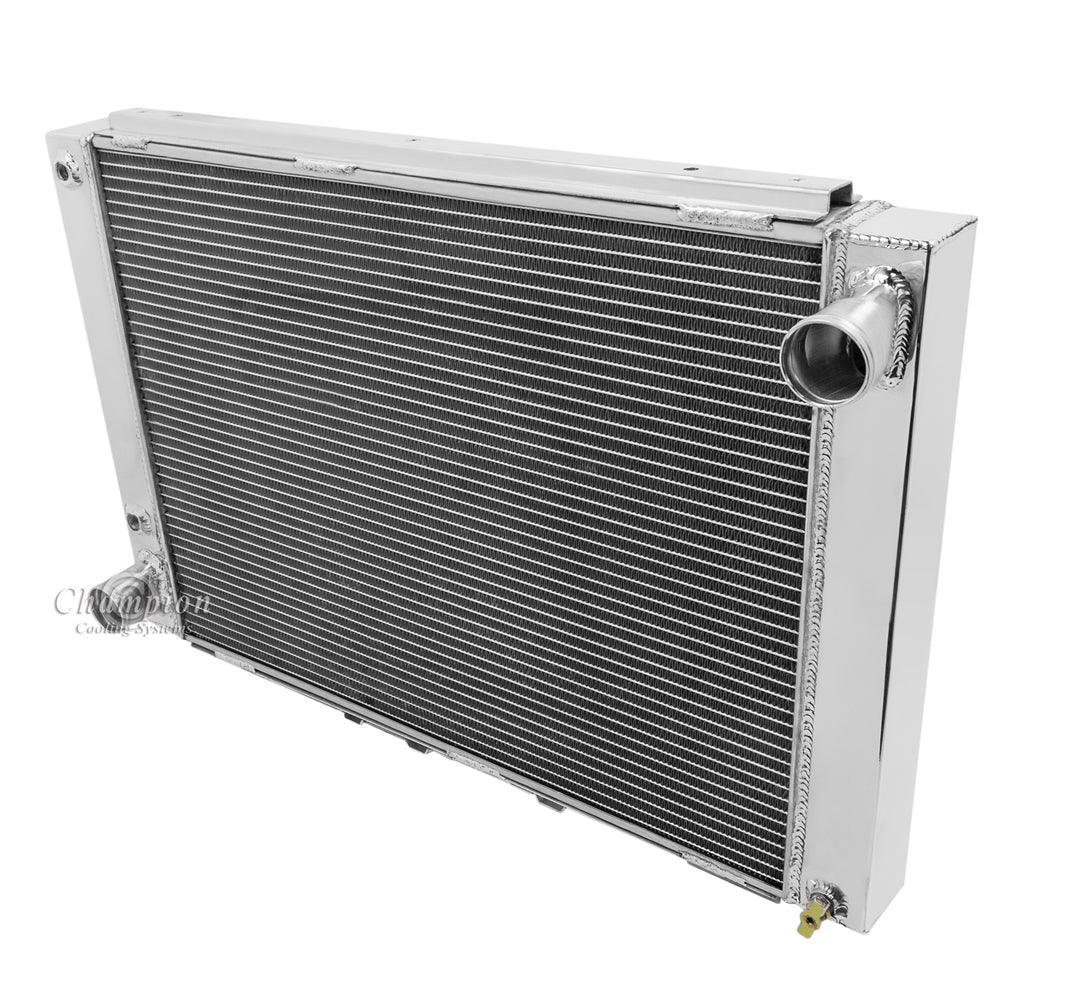

1964-1966 Ford Thunderbird 3-Row Radiator
3-Row Core | Cools up to 600hp
Note: There were two radiators for the 1966 T-Bird please check your top plate/h5>
Radiator Dimensions:
Total: 21" x 27.75" wide
Core: 17.5" tall x 23.25" wide x 2.25" thick
Inlet: 1.75" passenger
Outlet: 1.75" driver
Tanks: 2.75" thick
Tubes: 0.63" thick
Saddle Mounted
Whats Included
- Saddle Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/4" npt)
Add On Options
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
POLISHED OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
48" Polished Stainless Steel Radiator Hose Kit:
4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
Core Size
Core Size
Application
Application
Ford / Thunderbird
Add On Options
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
STAINLESS OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
