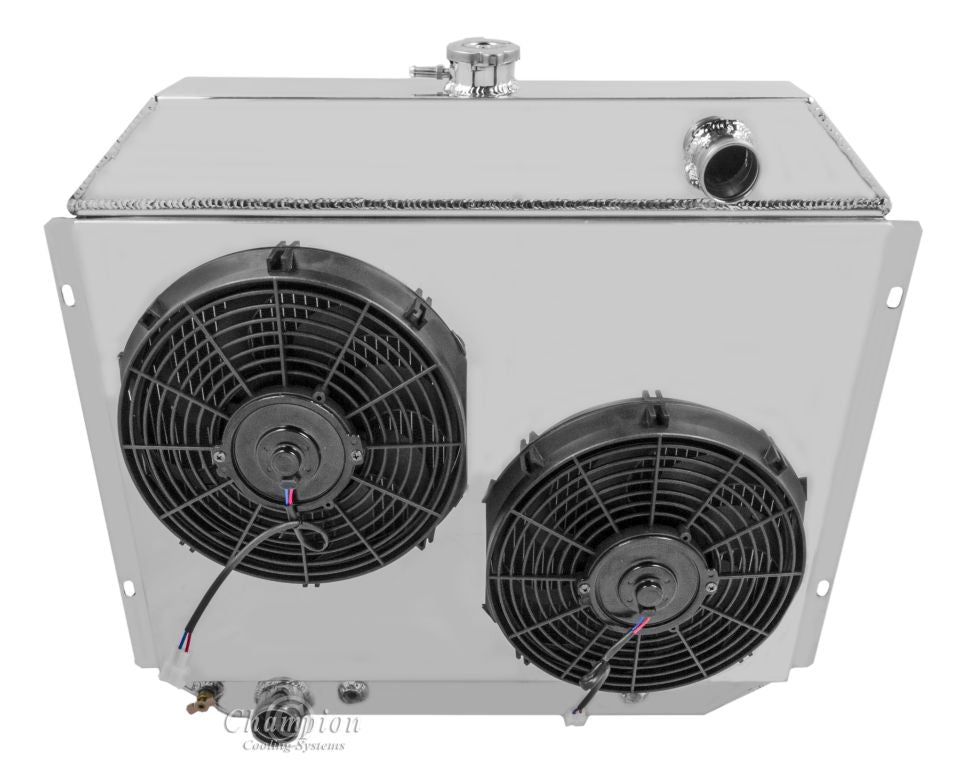

1967-1979 Ford Trucks, F100 3-Row Radiator, Shroud, Dual Fan Combo - Chevy V8 Motor - Champion Radiator

Radiator Dimensions:

Total: 25" tall (26.38" with cap) x 29" wide (with brackets)
Core: 18.75" tall x 26" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Whats Included

- 12" Fans
- Bracket Mounted - Note: Uses Grill Side Mounting Brackets
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/2" 20 STRAIGHT THREAD)
- Aluminum shroud

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
