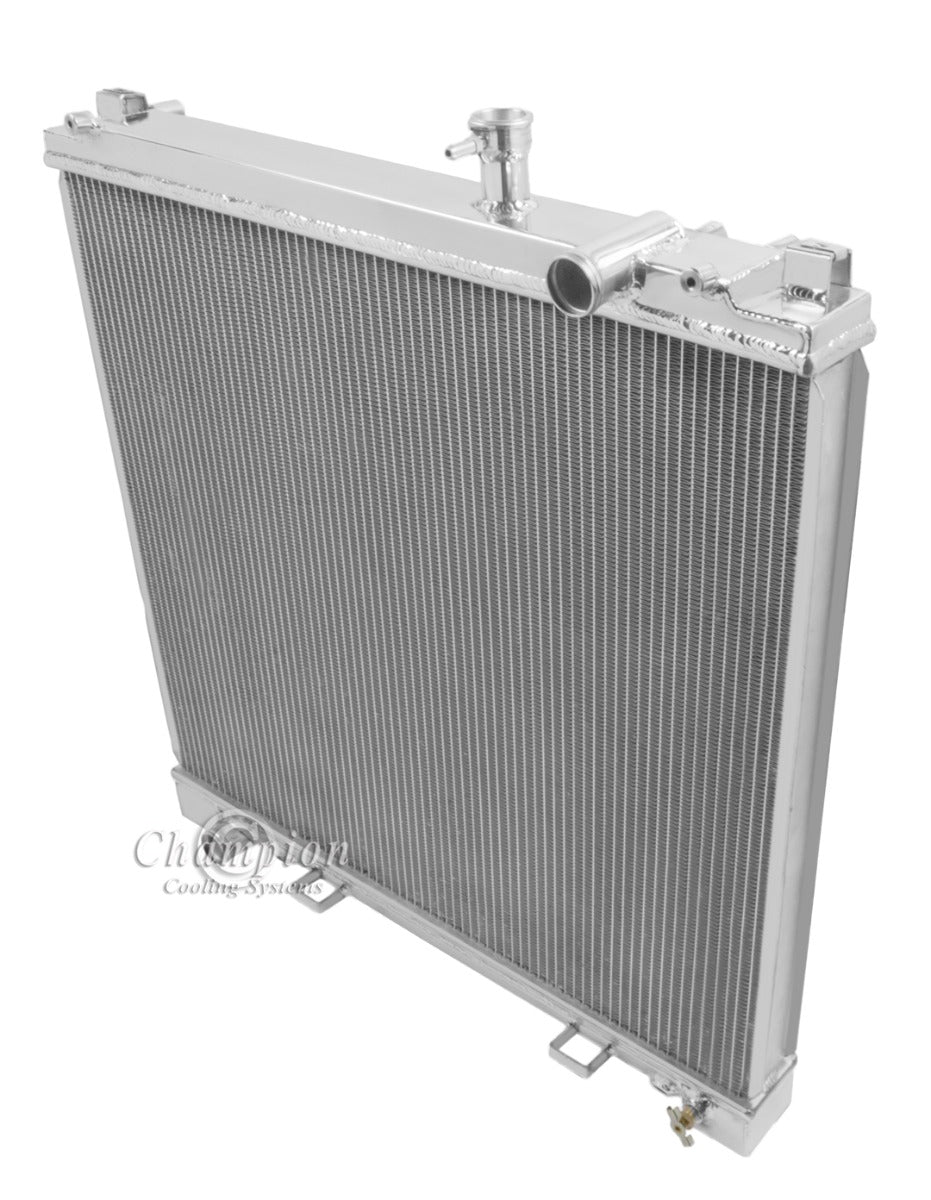

2004-2015 Nissan Titan 3-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 30.88" tall x 27.5" wide Core: 23.5" tall x 26.88" wide x 2" thick Inlet: 1.38" passenger side Outlet: 1.38" drivers side Tanks: 2.63" thick Tubes: 0.63" thick

Pin Mounted

Whats Included

- Pin Mounted
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/4-NPT)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
