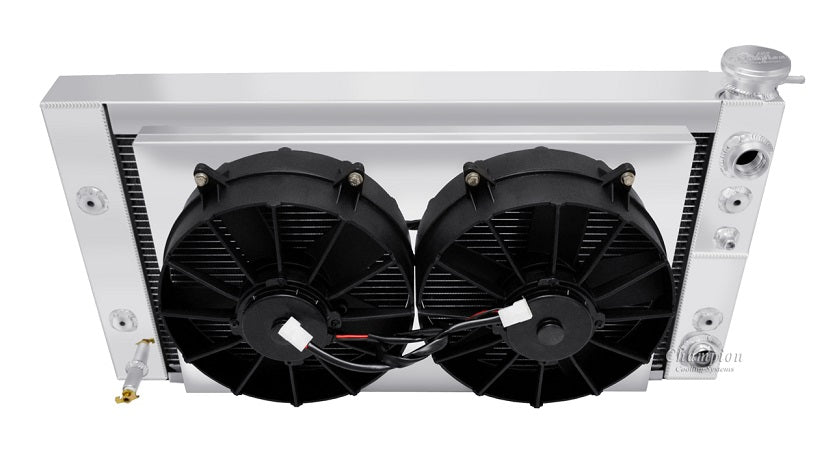

1955-1957 Chevy 210 Dual Pass 2-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 17.13" tall x 31.25" (including brackets)
Core: 16" tall x 26" wide x 2.25" thick
Inlet: (Choose your size below) passenger side
Outlet: (Choose your size below) passenger side
Tanks: 3" thick
Tubes: 0.63" thick
Mounting; Bungs and Bolts (Included)

Total Thickness (Radiator, Shroud and Fans): 7"

Whats Included

- Includes Shroud and 2-11" high performance paddle fans
- 6 Cylinder Mounts - to make more room for motor
- 13lb. Radiator Cap included
- Aluminum shroud

* Requires external transmission cooler for Automatic Transmissions

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

Core Support Panels

Polished Panels to fit your year chevy.
Includes pre-dilled holes for Radiator Inlet/Outlet.

AC Condenser

Includes AC Lines for Condenser

16AN Hose Kit

Complete your install with a clean look braided an hose line and swivel ends.
