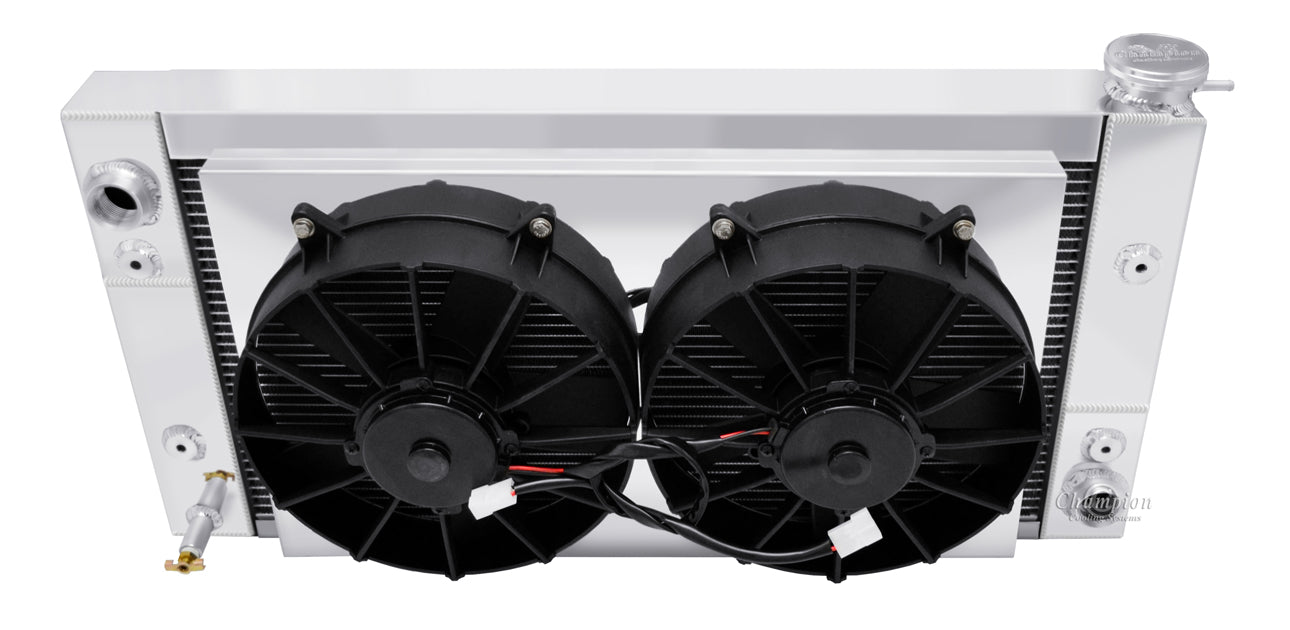

1955-1957 Chevy Bel Air V8 Triple Pass 2-Row Radiator, Shroud, Dual Fan Combo - Champion Radiator

Radiator Dimensions:

Total: 17.13" tall x 31.25" (including brackets)
Core: 16" tall x 26" wide x 2.25" thick
Inlet: (Choose your size below) driver side
Outlet: (Choose your size below) passenger side
Tanks: 3" thick
Tubes: 0.63" thick
Mounting; Bungs and Bolts (Included)

Whats Included

* You MUST Choose your Outlet sizes
- Includes Shroud and 2-11" high performance paddle fans
- V6 Mounts - to make more room for motor
- 13lb. Radiator Cap included
- Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
- Aluminum shroud

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
