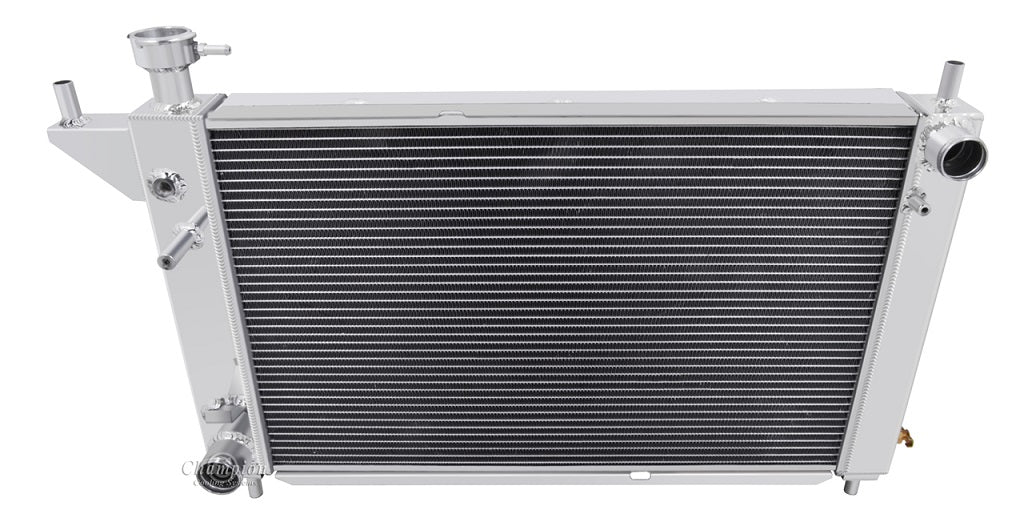

1994-1996 Mustang 2-Row Radiator - Champion Radiator

Radiator Dimensions:

Total: 20.5" tall (with cap) x 32.5" wide
Core: 15.75" tall x 24.5" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Pin Mounted

Whats Included

- Pin Mounted
- 13lb. Radiator Cap included
- Transmission Cooler included (1/8-27NPT)

Compatible With
Ford Mustang 1994-1995 (3.8L V6, 5.0L/302ci V8)
Ford Mustang 1996 (3.8L V6)

Thermostat / Relay Kit:

Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°

POLISHED OVERFLOW TANK:

Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets

48" Polished Stainless Steel Radiator Hose Kit:

4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
